Description
Standard eMMC Grypper-G40 Sockets

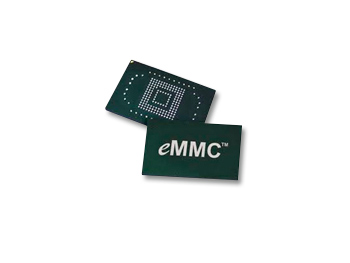

These sockets are specifically designed for standard 153 & 169 Ball eMMC devices.
Custom probing sockets also available.
| IMAGE | Ball Count-Socket Size-Pitch | Device Solder Ball D. +/-0.05mm | Standard with SAC 305 Solder Balls | Option with Eutectic Solder Balls | Option with No Solder Balls |
|
|
153 – 11.5 x 13.0 – 0.5 | 0.30 | 107250-0026 | 108387-0026 | 107248-0026 |
| Alignment Frame | 108639-0003 | ||||
| Device Press – 11.5 x 13.0 | 103864-0128 | ||||
| Stencil – 153 – 11.5 x 13.0 | N/R | N/R | 104553-0220 | ||
| 153 – with build in Alignment Feature – alignment frame not required – use press and stencil from above | |||||
|
|
153 – 11.5 x 13.0 – 0.5 | 0.30 | 107250-0065 | 108387-0064 | 108519-0064 |
|
|
169 – 12.0 x 16.0 – 0.5 | 0.30 | 107250-0009 | 108387-0009 | 107248-0009 |
| Alignment Frame | 106083-0021 | ||||
| Device Press – 12.0 x 16.0 | 103864-0080 | ||||
| Stencil – 169 – 12.0 x 16.0 | N/R | N/R | 104553-0166 | ||
| 169 – 14.0 x 18.0 – 0.5 | 0.30 | 107250-0012 | 108387-0066 | 107248-0012 | |
| Alignment Frame | 106083-0028 | ||||
| Device Press – 14.0 x 18.0 | 103864-0116 | ||||
| Stencil – 169 -14.0 x 18.0 | N/R | N/R | 104553-0175 | ||
Actual device measurements should be reviewed to ensure proper fit with socket contacts.
Other configurations / socket outline sizes available upon request.
Alignment Frames are now ordered separately and recommended to ensure device alignment before inserting into the socket.
| 153 – Smaller Outline Sockets | |||||
| IMAGE | Ball Count-Socket Size- Pitch | Device Solder | Standard with SAC 305 Solder Balls | Option with Eutectic Solder Balls | Option with No Solder Balls |
| Ball D. +/-0.05mm | |||||
|
|
153 – 11.5 x 10.0 – 0.5 | 0.30 | 107250-0050 | 108387-0067 | 107248-0050 |
| Alignment Frame | 108639-0010 | ||||
| Device Press – 11.5 x 10.0 | 103864-0095 | ||||
| Stencil – 153 – 11.5 x 10.0 | N/R | N/R | 104553-0287 | ||
| 153 – 10.0 x 11.0 – 0.5 | 0.30 | 107250-0045 | 108387-0068 | 107248-0045 | |
| Alignment Frame | 108639-0004 | ||||
| Device Press – 10.0 x 10.0 | 103864-0054 | ||||
| Stencil – 153 – 10.0 x 10.0 | N/R | N/R | 104553-0275 | ||
| 153 – 10.5 x 10.5 – 0.5 | 0.30 | 107250-0052 | 108387-0069 | 107248-0052 | |
| Alignment Frame | 108639-0011 | ||||
| Device Press – 10.5 x 10.5 | 103864-0073 | ||||
| Stencil – 153 – 10.5 x 10.5 | N/R | N/R | 104553-0292 | ||
| 153 – 11.5 x 8.0 – 0.5 | 0.30 | 108348-0004 | 108387-0070 | 107610-0004 | |
| Alignment Frame | 108639-0001 | ||||
| Device Press – 11.4 x 8.0 | 103864-0108 | ||||
| Stencil – 153 – 11.5 x 8.0 | N/R | N/R | 104553-0236 | ||
| 153 – 10.0 x 10.0 – 0.5 | 0.30 | 107250-0059 | 108387-0059 | 107248-0059 | |
| Alignment Frame | 108639-0029 | ||||
| Device Press – 10.0 x 10.0 | 103864-0033 | ||||
| Stencil – 153 – 10.0 x 10.0 | N/R | N/R | 104553-0318 | ||
| 153 – 7.5 x 11.5 – 0.5 | 0.30 | 109069-0002 | 109069-0001 | 109069-0003 | |
| Alignment Frame | n/a | ||||
| Device Press – 7.5 x 10.3 | 103864-0119 | ||||
| Stencil – 153 – 7.5 x 11.5 | N/R | N/R | 104553-0418 | ||
| 153 – 7.5 x 7.5 – 0.5 | 0.30 | 109106-0002 | 109106-0001 | 109106-0003 | |
| Alignment Frame | n/a | ||||
| Device Press – 7.0 x 7.0 | 103864-0077 | ||||
| Stencil – 153 – 7.5 x 7.5 | N/R | N/R | 104553-0496 | ||
N/R – Not Required for sockets with solder balls attached
Other configurations / socket outline sizes available upon request
Custom designs for probing – inquire
Extraction Tool: 105900-0004
 |
Combination Grypper with Spring Pin snap on ring for probing LGA pad on eMMC devices
 |
 |
