Description
GHz Socket Lid & Tool Options
The tools table below includes drawings for torque drivers and torque screws to apply required pressure making reliable IC connection.
| PART NUMBER |
RoHS | Part Description |

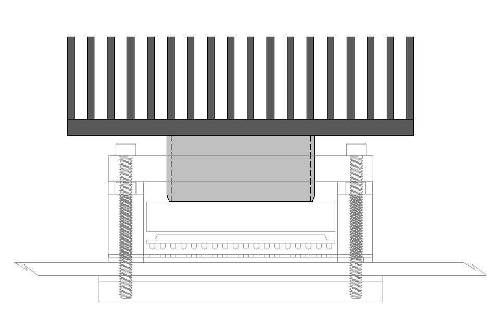

| HS-SG-6001 | yes | 4.5W typ. Heat sink screw |
| HS-SG-6002 | yes | 16W typ. Heat sink screw |
| HS-SG-6003 | yes | 5-6W typ. Heat sink screw |
| HS-SG-6004 | yes | 8.5W typ. Heat sink screw |
| HS-SG-6005 | yes | 3 – 7W Heat sink screw |
| HS-SG-6006 | yes | 10W typ. Heat sink screw |
| HS-SG-6007 | yes | 8W typ. Heat sink screw |
| TL-PGA-EX-01 | Yes | PGA extraction crwbar tool |
| TL-PLCC-EX-01 | Yes | PLCC extraction tool |
| TL-PQFP100-LA-01 | Yes | Production socket lid extraction tool |
| TL-PQFP132-LA-01 | Yes | Production socket lid extraction tool |
| TL-PQFP164-LA-01 | Yes | Production socket lid extraction tool |
| TL-PQFP84-LA-01 | Yes | Production socket lid extraction tool |
| TL-TORQUEDRIVER-01 | Yes | Torque Driver; Adjustable; 20-100 in. oz. range; 1 in. oz. Increments |
| TL-TORQUEDRIVER-02 | Yes | Torque Driver; Adjustable; 48-240 in. oz. range; 3.2 in. oz. Increments |
| TL-TORQUEDRIVER-03 | Yes | Torque Driver; Adjustable; 80-640 in. oz. range; 8 in. oz. Increments |
| TL-TORQUEDRIVER-05 | Yes | Preset torquescrewdriver; Torque: 8 in. oz. [0.5 in. lb.] |
| TL-TORQUEDRIVER-06 | Yes | Preset torque screwdriver; torque: 16 in. oz. [1.0 in. lb.] |
| TL-TORQUEDRIVER-09 | Yes | Torque Driver; Adjustable; 6-20 in. oz. range |
| TL-TORQUEDRIVER-11 | Yes | Torque Driver; Adjustable; 384-7104 in. oz. range |
