Description

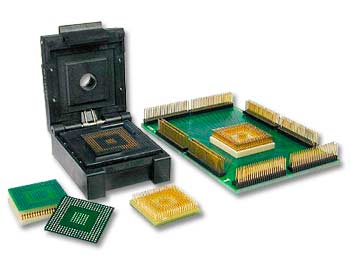

BGA Probing Systems
The headers, or test points, on our probe boards come in three spacings, which is indicated by a letter (A, B, or C) in the part number.
The typical probe board presents an upper interface that accepts an industry standard ZIF socket or one of our compatible land sockets.
The bottom interface on the typical probe board plugs into a compatible surface mount foot part.
| PART NUMBER |
RoHS | Part Description |
Top Pkg Code |
Top Pitch mm |
Bottom Pitch mm |
Top Pin Count |
Bottom Pin Count |
Top Array Size |
Bottom Array Size |
| PB-BGA232A-Z-01 | Call | BGA GHZ Probe Board | BGA232A | 0.8 | 0.8 | 256 | 256 | 16 x 16 | 16 x 16 |
| PB-BGA256E-01 | Call | BGA Probe Board | BGA256E | 1 | 1 | 256 | 256 | 16 x 16 | 16 x 16 |
| PB-BGA256E-B-02 | Call | BGA Probe Board | BGA256E | 1 | 1 | 256 | 256 | 16 x 16 | 16 x 16 |
| PB-BGA256J-Z-01 | Call | BGA Probe Board | BGA256J | 0.8 | 0.8 | 256 | 256 | 16 X 16 | 16 X 16 |
| PB-BGA256J-Z-02 | Call | BGA Probe Board | BGA256J | 0.8 | 0.8 | 256 | 256 | 16 x 16 | 16 x 16 |
| PB-BGA256K-Z-02 | Yes | BGA Probe Board | BGA256K | 0.8 | 0.8 | 256 | 256 | 17 x 17 | 17 x 17 |
| PB-BGA-MPC555-01 | Call | BGA Probe Board | BGA272A | 1.27 | 1.27 | 272 | 272 | 20 x 20 | 20 x 20 |
| PB-BGA-MPC555-02 | Call | BGA Probe Board | BGA272A | 1.27 | 1.27 | 272 | 272 | 20 x 20 | 20 x 20 |
| PB-BGA292F-Z-01 | yes | BGA Probe Board | BGA292F | 0.8 | 0.8 | 292 | 292 | 20 x 20 | 20 x 20 |
| PB-FLEX300-Z-01 | Call | Flex Probe Board | LGA300 | 0.5 | 0.5 | 300 | 300 | ||
| PB-BGA-RM7000-01 | Call | BGA Probe Board | BGA304A | 1.27 | 1.27 | 304 | 304 | 23 x 23 | 23 x 23 |
| PB-BGA337-TMS570-01 | Call | BGA Probe Board | BGA337 | 0.8 | 0.8 | 337 | 337 | 19 x 19 | 19 x 19 |
| PB-BGA-8240-01 | Call | BGA Probe Board | BGA352A | 1.27 | 1.27 | 352 | 352 | 26 x 26 | 26 x 26 |
| PB-BGA36B-Z-01 | Call | BGA GHZ Probe Board | BGA036B | 0.75 | 0.75 | 36 | 36 | 6 x 8 | 6 x 8 |
| PB-BGA-750-03 | Call | BGA Probe Board | BGA360 | 1.27 | 1.27 | 360 | 360 | 19 x 19 | 19 x 19 |
| PB-BGA-7400-01 | Call | BGA Probe Board | BGA360 | 1.27 | 1.27 | 361 | 361 | 19 x 19 | 19 x 19 |
| PB-BGA-64130-01 | Call | BGA Probe Board | BGA388 | 1.27 | 1.27 | 388 | 388 | 26 x 26 | 26 x 26 |
| PB-BGA405GP-01 | Call | BGA Probe Board | BGA413A | 1 | 1 | 413 | 413 | 23 x 23 | 23 x 23 |
| PB-BGA-MPC5554-S-01 | Call | BGA Probe Board | BGA416E | 1 | 1 | 416 | 416 | 26 x 26 | 26 x 26 |
| PB-BGA420B-01 | Call | BGA Probe Board | BGA420B1 | 1.27 | 1.27 | 420 | 420 | 26 x 26 | 26 x 26 |
| Top Interface |
Bottom Interface |
Header Spacing mm |
Compatible Part 1 |
Compatible Part 2 |
Compatible Part 3 |
Adapter Size L. X Width in. |
Skt Type |
| GHZ SOCKET | MGA FEMALE Receptacle | 2.54 x 2.54 | SF-BGA232A-B-11 | N/A | N/A | 3.1 x 2 | – |
| MGA MALE PINS | MGA FEMALE Receptacle | 2.54 x 2.54 | SF-BGA256E-B-11 | N/A | N/A | 3.5 x 3.5 | CS |
| GHZ SOCKET | UGA FEMALE Receptacle | 2.54 x 2.54 | N/A | N/A | N/A | 91344 x 91.44 | GHz |
| GHZ SOCKET | MALE PINS | 2.54 x 2.54 | SF-BGA256J-B-01 | N/A | N/A | 78.64 x 50.8 | GHz |
| GHZ SOCKET | Solder balls | 2.54 x 2.54 | N/A | N/A | N/A | 78.74 x 50.80 | GHz |
| GHZ SOCKET | Solder balls | 2.54 x 2.54 | N/A | N/A | N/A | 3.6 x 2.2 | N/A |
| MGA FEMALE Receptacle | MGA MALE PINS | Mictor | SF-BGA272A-B-02 | N/A | N/A | 3.175 x 0.675 | – |
| SMT Land Pads | MGA MALE PINS | Mictor | SF-BGA272A-B-72 | N/A | N/A | 3.175 x 2.3 | – |
| GHZ SOCKET | Solder balls | 2.54 | N/A | SG-BGA-6435 | SF-BGA292F-B-64F | 142.24 x 101.60 | GHz |
| GHZ SOCKET | N/A | FPC connector | N/A | SBT-LGA-9010 | N/A | 120 x 120 | GHz |
| MGA MALE PINS | MGA FEMALE Receptacle | Mictor | SF-BGA304A-B-11 | LS-BGA304A-02 | N/A | 2.82 x 3.23 | CS |
| GHZ SOCKET | Solder balls | Mictor | N/A | N/A | N/A | 49.53 x 72.39 | GHz |
| MGA MALE PINS | MGA FEMALE Receptacle | Mictor | SF-BGA352A-B-11 | LS-BGA342A-01 | N/A | 3.05 x 3.07 | – |
| GHZ SOCKET | MGA MALE Pins | 2.54 x 2.54 | SF-BGA36B-B-03 | N/A | N/A | 1.4 x 1.4 | – |
| MGA MALE PINS | MGA FEMALE Receptacle | Mictor | SF-BGA360A-B-11 | LS-BGA360A-02 | N/A | N/A | – |
| MGA MALE PINS | MGA FEMALE Receptacle | Mictor | SF-BGA360A-B-11 | LS-BGA360A-02 | N/A | 2.95 x 3 | CS |
| MGA MALE PINS | MGA FEMALE Receptacle | Mictor | SF-BGA388A-B-11 | LS-BGA388A-01 | N/A | 3.475 x 4.26 | – |
| MGA MALE PINS | MGA FEMALE Receptacle | 1.27 x 2.54 | SF-BGA413A-B-11 | LS-BGA413A-02 | N/A | 3.38 x 1.51 | – |
| Headers | MGA MALE PINS | 2.54 x 2.54 | N/A | SF-BGA416E-B-11 | N/A | 2.618 x 2.618 | N/A |
| MGA MALE PINS | MGA FEMALE Receptacle | 1.27 x 2.54 | SF-BGA420B-B-11 | LS-BGA420B-02 | N/A | 3.55 x 3.3 | – |
