PLCC Probing Adapters
PLCC Probing Adapters allow in-circuit socketing and probing of PLCC packages. Our unique, low profile “Lo-Clips” provide for clip-on, in place probing. “Carrier adapters” utilize interchangeable bases, available in solderable J-lead, PLCC plug, or clip-on versions. Socket probes house PLCC or PGA devices and plug into PLCC sockets.are also provided by several versions our multi-piece PLCC probing adapters (or “Carrier Adapters”) that incorporate a socket plug base.

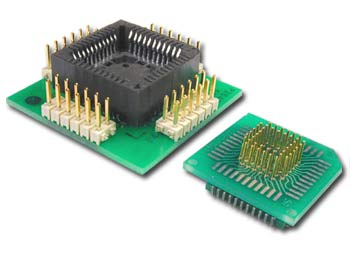

Ironwood offers several types of PLCC probing adapters, including PLCC socket probes and our unique one-piece “PLCC LoClips“. Our multi-piece “Carrier Adapter” systems consist of an interchangeable PLCC emulation base and a probe board that provides test points and a socket to carry the device.
| PART NUMBER |
RoHS | Part Description |
Top Pin Count |
Bottom Pin Count |
| PL-PLCC20-H-01 | Call* | PLCC Plug High Density Thru-Hole | 20 | 20 |
| PL-PLCC20-M-01 | Call* | PLCC Plug Mini-Grid Array | 20 | 20 |
| PL-PLCC20-P-01 | Call* | PLCC Plug to Plug | 20 | 20 |
| PL-PLCC20-S-01 | Call* | PLCC Plug Surface Mount | 20 | 20 |
| PL-PLCC20-S-02 | Call* | PLCC Plug Surface Mount w/Alignment Pins | 20 | 20 |
| PL-PLCC20-T-01 | Call* | PLCC Plug thru-hole Standard | 20 | 20 |
| PL-PLCC28-H-01 | Call* | PLCC Plug High Density Thru-Hole | 28 | 28 |
| PL-PLCC28-M-01 | Call* | PLCC Plug Mini-Grid Array | 28 | 28 |
| PL-PLCC28-P-01 | Call* | PLCC Plug to Plug | 28 | 28 |
| PL-PLCC28-S-01 | Call* | PLCC Plug Surface Mount | 28 | 28 |
| PL-PLCC28-S-02 | Call* | PLCC Plug Surface Mount w/Alignment Pins | 28 | 28 |
| PL-PLCC28-T-01 | Call* | PLCC Plug thru-hole Standard | 28 | 28 |
| PL-SOJ28A-M-01 | Call* | SOJ Plug Mini-Grid Array | 28 | 28 |
| PL-SOJ28A-S-01 | Call* | SOJ Plug Surface Mount | 28 | 28 |
| PL-PLCC32-H-01 | Call* | PLCC Plug High Density Thru-Hole | 32 | 32 |
| PL-PLCC32-M-01 | Call* | PLCC Plug Mini-Grid Array | 32 | 32 |
| PL-PLCC32-P-01 | Call* | PLCC Plug to Plug | 32 | 32 |
| PL-PLCC32-S-01 | Call* | PLCC Plug Surface Mount | 32 | 32 |
| PL-PLCC32-S-01F | yes | PLCC Plug Surface Mount | 32 | 32 |
| PL-PLCC32-S-02 | Call* | PLCC Plug Surface Mount w/Alignment Pins | 32 | 32 |
