Description

Sockets for High Bandwidth Applications

XG socket technology is designed for wide variety of IC package sizes to operate at bandwidths up to 40 GHz with less than 1dB of insertion loss, temperature range to 100C, and high number of insertions. The tables below show the sockets that are available immediately. In addition custom sockets using these technologies can be in your hands in a matter of weeks. XG sockets are mechanically mounted over a target system’s BGA lands using mounting and alignment holes at proper locations (page 2 of the individual socket drawing shows recommended PCB layout information). These low-profile sockets are only 2.5 mm per side larger than actual IC packages (industry’s smallest footprint) and are compatible with the alternate socket technologies footprint as well. The sockets have a precision design, which guides the IC ball to the exact position for connection to corresponding PCB pad and uses an aluminum heat sink screw to provide compressive force. The sockets are designed to dissipate up to several watts without extra heat sinking and can handle up to 100 watts with a custom heat sink. The user simply places the IC into the socket, places the compression plate, swivels the lid, and applies torque to heat sink screw to connect the IC.

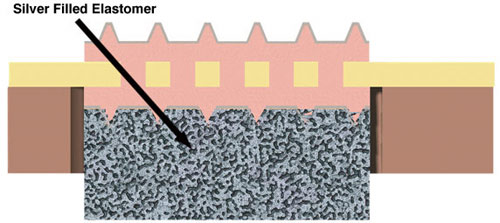

Silver particle contactor is a low resistance (<0.05ohms) connector held in flex substrate. The top side of contactor consists of gold/nickel plated individual copper pads with spiked caps that make contact with package leads/balls. The bottom side of contactor consists of silver filled individual silicone rubber pads that compresses against PCB pads. At compressed state, the distance between DUT pad and PCB pad is very similar to solder height which makes the XG interconnect transparent to electrical signal. XG interconnect delivers the clearest possible signal due to the extremely short current path, low resistance, and ultra-low inductance and capacitance. Kapton substrate holding individual interconnects provide over-compression stop preventing damage to elastomer pads.

PART NUMBER	RoHS	IC Size X mm	IC Size Y mm	IC Size Tol.ce mm	Top Pitch mm	IC Array X	IC Array Y	Max Pincount	IC Ball H. Min mm	IC Ball H. Max mm
XG-BGA-5000	yes	8	8	0.08	0.5	16	16	216	0.18	0.28
XG-BGA-5003	yes	8	8	0.05	0.5	16	16	183	0.15
XG-BGA-5007	yes	12	12	0.1	0.4/0.5	29	29	617/168	0.11	0.21
XG-BGA-5008	yes	12	12	0.1	0.4/0.5	29	29	617/168	0.11	0.21
XG-BGA-5009	yes	3.06	2.898	0.012	0.4	6	6	36	0.164	0.224

IC Total H. Max mm	IC Ball Copl.ty mm	IC Ball D. Max mm	Backing Plate	Part Description	Max Pkg Code	Cavity Down	IC Top Surface	Socket Lid	Heat Sink
2.5	0.08	0.35	yes	GHz BGA Socket (ZIF)	BGA216	no	Flat	Swivel	no
0.8	0.08	0.35	yes	GHz BGA Socket (ZIF)	BGA183	no	Flat	Swivel	no
0.94	0.1	0.3	yes	GHz BGA Socket (ZIF)	BGA617/BGA168	no	Flat	Swivel	no
0.94	0.1	0.3	yes	GHz BGA Socket (ZIF)	BGA617/BGA168	no	Flat	Swivel	no
0.65	0.08	0.328	no	GHz BGA Socket (ZIF)	BGA36	no	Flat	Swivel	no
