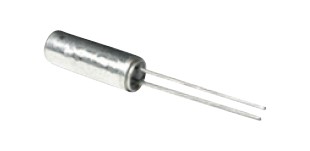

TB26 Series Thru-Hole Crystal Quartz

Features:

  • Low cost for consumer applications
  • Watch frequency
  • Applications: : Real time clock,…Telecommunication equipment, Industrial, Pagers,…
  • Frequency Range: 32.768 kHz / 30.0 kHz ~ 100 kHz *
  • Dimension: 6.0 x 2.0 mm Cylindrical

TB26 Series

Description

HM International manufacture a wide range of quartz crystals to suit virtually all applications, including high frequency, low frequency and small SMD miniature packages. We also stock crystals in most popular package styles, frequencies and specifications for quick delivery.

Picture Product Dimensions (mm) Frequency Range
 x15 X15 1.6 x 1.0 x 0.5 mm 32.768 kHz
x21 X21 2.0 x 1.2 x 0.6 mm 32.768 kHz
x31 X31 3.2 x 1.5 x 0.7 mm 32.768 kHz
X31a X31A 3.2 x 1.5 x 0.7 mm 32.768 kHz
x41 X41 4.1 x 1.5 x 0.9 mm 32.768 kHz
x130c X130C 6.9 x 1.4 x 1.3 mm 32.768 kHz
sx99 SX99 8.0 x 3.8 x 2.5 mm 30.0 – 100 kHz
 tb15smx TB15SMX 5.0 x 1.5 mm cylindrical 30.0 – 100 KHz
tb26smd TB26SMD 6.0 x 2.0 mm cylindrical 30.0 – 100 kHz
 tb26smx TB26SMX 6.0 x 2.0 mm cylindrical 30.0 – 100 kHz
tb26 TB26 6.0 x 2.0 mm cylindrical 30.0 – 100 kHz
 tb38 TB38 8.0 x 3.0 mm cylindrical 30.0 – 100 kHz
