SX7KL 32.768 kHz Surface-Mount Crystal Clock Oscillator

Features:

  • Miniature package
  • AT-cut crystal built-in
  • Low power consumption of 65 uA (typ.)
  • Extend temperature range available
  • Applications: Portable electronics,…
  • Nominal Frequency : 32.768 kHz
  • Supply Voltage: +1.8V ±5% / +2.5V ±5% / +3.3V ±5% / +5.0V ±5%
  • Dimension: 7.0 x 5.0 x 1.5 mm

SX7KL 32.768 kHz

Categories: , Tags: , , , , , , , ,

Description

HM International produce oscillators in a wide range of packages and output types including HCMOS, True Sinewave, LVPECL, HCSL and LVDS. Delivery leadtimes are short, even for production quantity requirements.

Related Product Series:

Picture Product Features Dimensions (mm) Frequency Range

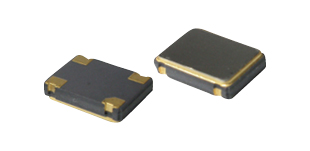

 sx2k SX2K AT-cut divider 2.5 x 2.0 x 0.9 mm 32.768 kHz
 sx2kl SX2KL AT-cut, Low current 2.5 x 2.0 x 0.9 mm 32.768 kHz

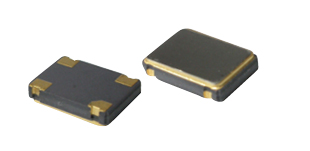

 sx3k SX3K AT-cut divider 3.2 x 2.5 x 1.2 mm 32.768 kHz
 sx3kl SX3KL AT-cut, Low current 3.2 x 2.5 x 1.2 mm 32.768 kHz
 sx3kf SX3KF Tuning-fork design 3.2 x 2.5 x 1.2 mm 32.768 kHz

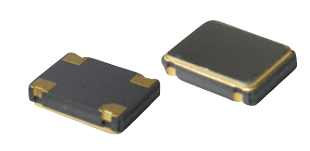

 sx5k SX5K AT-cut divider 5.0 x 3.2 x 1.3 mm 32.768 kHz
 sx5kl SX5KL AT-cut , Low current 5.0 x 3.2 x 1.3 mm 32.768 kHz

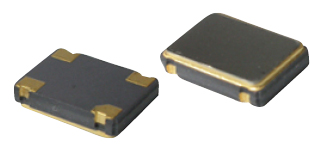

 sx7k SX7K AT-cut divider 7.0 x 5.0 x 1.5 mm 32.768 kHz
 sx7kl SX7KL AT-cut , Low current 7.0 x 5.0 x 1.5 mm 32.768 kHz
