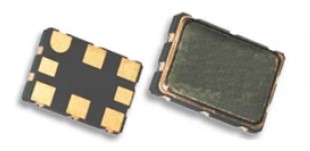

SX7HF HCSL Surface-Mount Crystal Clock Oscillator

Features:

  • 4 Frequencies Switchable
  • Ultra-low Jitter
  • Up to 700 MHz
  • Short delivery
  • Applications: SONET, xDSL, SDH, Media box, …
  • Nominal Frequency: 15 MHz~700 MHz
  • Supply Voltage: +1.8V ±5% / +2.5V ±5% / +3.3V ±5%
  • Dimension: 7.0 x 5.0 x 1.8 mm

SX7HF HCSL

Description

HM International produce oscillators in a wide range of packages and output types including HCMOS, True Sinewave, LVPECL, HCSL and LVDS. Delivery leadtimes are short, even for production quantity requirements.

Related Product Series:

Picture Product Features Dimensions (mm) Frequency Range
 sx3hk SX3HK Excellent Phase Noise 3.2 x 2.5 x 1.1 mm 13.5 – 200 MHz
 sx5hk SX5HK Excellent Phase Noise 5.0 x 3.2 x 1.3 mm 13.5 – 200 MHz
 sx5hu SX5HU Ultra Low jitter 5.0 x 3.2 x 1.3 mm 150 – 700 MHz
 sx7hk SX7HK Excellent Phase Noise 7.0 x 5.0 x 1.8 mm 13.5 – 200 MHz
 sx7hu SX7HU Ultra Low jitter 7.0 x 5.0 x 1.8 mm 150 – 700 MHz
 sx7hf SX7HF 4 frequencies switchable 7.0 x 5.0 x 1.8 mm 15 – 700 MHz
