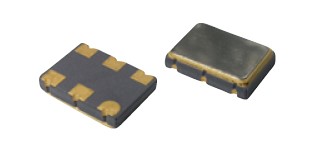

SX5LPV LVDS Surface-Mount Voltage Controlled Crystal Clock Oscillator

Features:

  • Miniature package
  • Programmable VCXO
  • One day delivery
  • Applications: SONET, xDSL, SDH, Media box, …
  • Nominal Frequency: 10.0 MHz ~ 1450 MHz
  • Supply Voltage: +2.5V ±5% / +3.3V ±5%
  • Dimension: 5.0 x 3.2 x 1.3 mm

SX5LPV LVDS

Categories: , , , Tags: , , , , , , ,

Description

HM International Voltage Controlled Crystal Oscillators (VCXOs) are produced with CMOS, LVPECL, LVDS, HCSL or True Sine Wave outputs in a wide variety of packages and specification characteristics.

Related Product Series:

Picture Product Features Dimensions (mm) Frequency Range
 sx3lqv SX3LQV Good Phase Noise 3.2 x 2.5 x 1.1 mm 10 – 1450 MHz
 sx3lpv SX3LPV next-day-delivery 3.2 x 2.5 x 1.1 mm 10 – 1450 MHz
 sx5lqv SX5LQV Good Phase Noise 5.0 x 3.2 x 1.3 mm 10 – 1450 MHz
 sx5lpv SX5LPV next-day-delivery 5.0 x 3.2 x 1.3 mm 10 – 1450 MHz
 sx5luv SX5LUV Ultra-low jitter 5.0 x 3.2 x 1.3 mm 15 – 2100 MHz
 sx7lqv SX7LQV Good Phase Noise 7.0 x 5.0 x 1.8 mm 10 – 1450 MHz
 sx7lpv SX7LPV next-day-delivery 7.0 x 5.0 x 1.8 mm 10 – 1450 MHz
 sx7luv SX7LUV Ultra-low jitter 7.0 x 5.0 x 1.8 mm 15 – 2100 MHz
 sp2lv SP2LV Superior Phase Noise 14.3 x 8.7 x 5.5 mm 0.75 – 800 MHz
