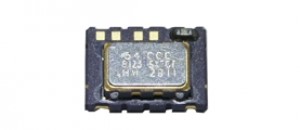

SX7STT Clipped Sine Wave Surface Mount TCXO

Features:

  • Miniature package
  • High precision for -10° to +70°C , ± 0.05 ppm / -40° to +85°C , ± 0.20 ppm
  • Applications: Femtocell, Base stations, Wireless communications, …
  • Nominal Frequency: 5.0 – 52.0 MHz
  • Supply Voltage: +3.3 V ±5% / +5.0 V ±5%
  • Dimension: 7.0 x 5.0 x 1.9 mm

SX7STT – TCXO

Description

HM International Temperature-Compensated Crystal Oscillators (TCXOs) are produced with CMOS, LVPECL, LVDS, HCSL, CML or Clipped Sine Wave outputs in a wide variety of packages and specification characteristics.

Related Product Series:

Picture Product Features Dimensions (mm) Frequency Range
 sxast SXAST Smallest TCXO package 1.65 x 1.25 x 0.6 mm 19.2 – 52.0 MHz
  sx1st SX1ST Miniature TCXO package 2.0 x 1.6 x 0.7 mm 13.0 – 52.0 MHz
 sx2st SX2ST Tight stability 2.5 x 2.0 x 0.8 mm 10.0 – 52.0 MHz
 sx3st SX3ST Standard SMD package 3.2 x 2.5 x 1.4 mm 8.192 – 52.0 MHz
 sx5st SX5ST Many options available 5.0 x 3.2 x 1.3 mm 6.4 – 52.0 MHz
 sx5stg SX5STG High Precision 5.0 x 3.2 x 1.65 mm 10.0 – 52.0 MHz
 sx7st SX7ST Low power consumption 7.0 x 5.0 x 2.0 mm 9.6 – 50.0 MHz
 sx7stt SX7STT ±0.05 ppm -10°C/+70°C 7.0 x 5.0 x 1.9 mm 5.0 – 52.0 MHz
 sp4st SP4ST Metal SMD case 11.4 x 9.6 x 2.5 mm 9.6 – 40.0 MHz
 c18st C18ST Wide frequency range 18.3 x 11.7 x 4.5 mm 1.0 – 125.0 MHz
 a18st A18ST Thru-hole package 18.3 x 11.7 x 4.5 mm 1.0 – 125.0 MHz
 dlst DLST DIL14 package 20.7 x 13.1 x 7.48 mm 1.0 – 64.0 MHz
