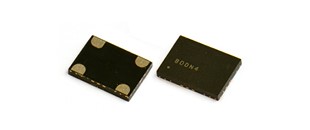

MX3C MEMS Oscillator

Features:

  • Silicon MEMS resonator based oscillator
  • Low power oscillator
  • Very high shock and vibration resistance
  • Operating temperature from -55°C to 125°C
  • Fast delivery
  • 500 million hours MTBF
  • Frequency Range: 1.0 – 110.0 MHz / 115.0 – 137.0 MHz
  • Supply Voltage: +1.8V ±10% / +2.5V ±10% / +2.8V ±10% / +3.0V ±10% / +3.3V ±10% / +2.5V to 3.3V ±10%
  • Dimension: 3.2 x 2.5 x 0.75 mm

 MX3C – MEMS

Categories: , Tags: , , , , , ,

Description

HM International provides general-purpose MEMS oscillators in a wide range of packages and supply voltages, frequencies between 1.0 MHz and 137.0 MHz. Other frequencies are available on request. They are a perfect fit for high shock applications. Delivery times are very short, available within 24 hours.

Related Product Series:

Picture Product Features Dimensions (mm) Frequency Range
MX1C MX1C MEMS oscillator 2.0 x 1.6 x 0.75 mm 1.0 – 137.0 MHz
MX2C MX2C MEMS oscillator 2.5 x 2.0 x 0.75 mm 1.0 – 137.0 MHz
MX3C MX3C Operating temperature
from -55° to +125°C		 3.2 x 2.5 x 0.75 mm 1.0 – 137.0 MHz
MX5C MX5C MEMS oscillator 5.0 x 3.2 x 0.75 mm 1.0 – 137.0 MHz
MX7C MX7C MEMS oscillator 7.0 x 5.0 x  0.90 mm 1.0 – 137.0 MHz
