SX3EVTP LVPECL Surface Mount VCTCXO

Features:

  • Miniature package
  • Programmable VCTCXO
  • One day delivery
  • Applications: Portable electronics, GPS, …
  • Nominal Frequency: 10.0 – 1450 MHz
  • Supply Voltage: +2.5 V ±5% / +3.3 V ±5%
  • Dimension: 3.2 x 2.5 x 1.7 mm

SX3EVTP – LVPECL VCTCXO

Description

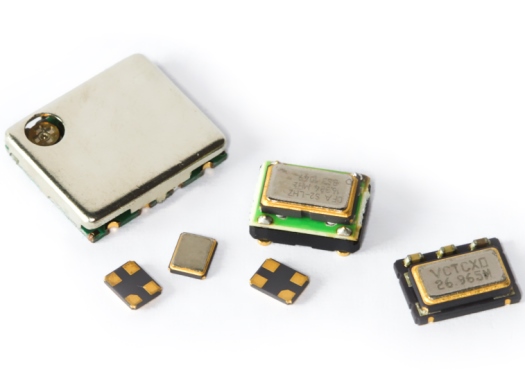

HM International Voltage Controlled Temperature-Compensated Crystal Oscillators (VCTCXOs) are produced with CMOS, LVPECL, LVDS, HCSL, CML or Clipped Sine Wave outputs in a wide variety of packages and specification characteristics.

Related Product Series:

Picture Product Features Dimensions (mm) Frequency Range
 sx3evtq SX3EVTQ Low jitter 3.2 x 2.5 x 1.7 mm 10.0 MHz – 1450 MHz
 sx3evtp SX3EVTP next-day-delivery 3.2 x 2.5 x 1.7 mm 10.0 MHz – 1450 MHz
  SX5EVTJ Ultra Low Jitter 5.0 x 3.2 x 1.5 mm 15.0 MHz – 2100 MHz
  SX7EVTQ Low jitter 7.0 x 5.0 x 2.5 mm 10.0 MHz – 1450 MHz
