SX3CPV HCMOS Surface Mount Voltage Controlled Crystal Clock Oscillator

Features:

  • Ultra-miniature package
  • Programmable VCXO
  • High shock and vibrational resistivity
  • Low current consumption
  • Applications: Telecommunications, Portable electronics, …
  • Nominal Frequency: 10.0 MHz ~ 245 MHz
  • Supply Voltage: +2.5V ±5% / +3.3V ±5%
  • Dimension: 3.2 x 2.5 x 1.1 mm

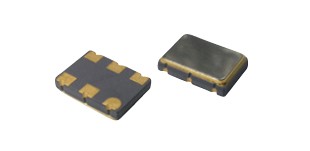

SX3CPV VCXO

Categories: , Tags: , , , , , , , , , ,

Description

HM International Voltage Controlled Crystal Oscillators (VCXOs) are produced with CMOS, LVPECL, LVDS, HCSL or True Sine Wave outputs in a wide variety of packages and specification characteristics.

Related Product Series:

Picture Product Features Dimensions (mm) Frequency Range
        sx2cv SX2CV Ultra-miniature package 2.5 x 2.0 x 0.9 mm 1.0 – 30.0 MHz
       sx3cv SX3CV Low current consumption 3.2 x 2.5 x 1.2 mm 1.0 – 54.0 MHz
 sx3cqv SX3CQV Low jitter 3.2 x 2.5 x 1.1 mm 50 – 245 MHz
 sx3cpv SX3CPV next-day-delivery 3.2 x 2.5 x 1.1 mm 10 – 245 MHz
 sx5cv SX5CV Tristate functions 5.0 x 3.2 x 1.3 mm 1.0 – 54.0 MHz
sx5cqv SX5CQV Low jitter 5.0 x 3.2 x 1.3 mm 50 – 245 MHz
 sx5cpv SX5CPV next-day-delivery 5.0 x 3.2 x 1.3 mm 10 – 245 MHz
 sx7cpv SX7CV Tristate functions 7.0 x 5.0 x 1.8 mm 1.0 – 75.0 MHz
 sx7cqv SX7CQV Low Jitter 7.0 x 5.0 x 1.8 mm 50 – 245 MHz
 sx7cpv SX7CPV next-day-delivery 7.0 x 5.0 x 1.8 mm 10 – 245 MHz
 sp2cv SP2CV Low Phase Noise 14.3 x 8.7 x 5.5 mm 1.0 – 800 MHz
 dlhcv DLHCV Large frequency pulling 12.7 x 12.7 x 5.08 mm 1.0 – 125.0 MHz
 dlcv DLCV Large frequency pulling 20.7 x 13.1 x 5.08 mm 1.0 – 125.0 MHz
