SX2CVT HCMOS Surface Mount VCTCXO · HMI

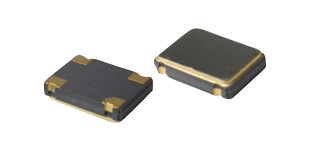

SX2CVT HCMOS Surface Mount VCTCXO

Features:

  • Ultra-miniature package
  • High shock and vibrational resistivity
  • Low current consumption
  • Applications: Portable electronics, GPS, …
  • Nominal Frequency: 1.25 – 54.0 MHz
  • Supply Voltage: +1.8 V ±5% / +2.8 V ±5% / +3.0 V ±5% / +3.3 V ±5%
  • Dimension: 2.5 x 2.0 x 0.9 mm

SX2CVT – VCTCXO

Description

HM International Voltage Controlled Temperature-Compensated Crystal Oscillators (VCTCXOs) are produced with CMOS, LVPECL, LVDS, HCSL, CML or Clipped Sine Wave outputs in a wide variety of packages and specification characteristics.

Related Product Series:

Picture Product Features Dimensions (mm) Frequency Range
 sx2cvt SX2CVT Ultra Miniature Package 2.5 x 2.0 x 0.9 mm 1.25 – 54 MHz
 sx3cvt SX3CVT Low Current Consumption 3.2 x 2.5 x 1.0 mm 1.25 – 54 MHz
 sx3cvtp SX3CVTP next-day-delivery 3.2 x 2.5 x 1.7 mm 10.0 – 245 MHz
 sx3cvtq SX3CVTQ Low jitter 3.2 x 2.5 x 1.7 mm 10.0 – 245 MHz
 sx5cvt SX5CVT Low Current Consumption 5.0 x 3.2 x 1.3 mm 1.25 – 54 MHz
 sx5cvtg SX5CVTG ±0.20ppm -40°C/+85°C 5.0 x 3.2 x 1.65 mm 10.0 – 52 MHz
  SX5CVTJ Ultra Low Jitter 5.0 x 3.2 x 1.5 mm 15.0 MHz – 250 MHz
 sx7cvt SX7CVT Low Current Consumption 7.0 x 5.0 x 2.3 mm 1.25 – 54 MHz
 sx7cvtq SX7CVTQ Low jitter 7.0 x 5.0 x 2.5 mm 10.0 – 245 MHz
 sx7cvtt SX7CVTT ±0.05ppm -10°C/+70°C 7.0 x 5.0 x 1.9 mm 5.0 – 52 MHz
 sp4cvt SP4CVT Wide Frequency Range 11.4 x 9.6 x 2.5 mm 1.0 – 125.0 MHz
 sp2cvt SP2CVT Wide Frequency Range 14.3 x 8.7 x 5.5 mm 1.0 – 200.0 MHz
 c18cvt C18CVT Wide Frequency Range 18.3 x 11.7 x 4.5 mm 1.0 – 125.0 MHz
 a18cvt A18CVT Adjustable Frequency 18.1 x 11.7 x 4.5 mm 1.0 – 125.0 MHz
 dlcvt DLCVT Wide Frequency Range 20.7 x 13.1 x 7.48 mm 1.0 – 125.0 MHz
