Gull Wing Sockets page 5 (201-250 PN.s) · Loranger

  • Kelvin, Double Duty Kelvin, and Non Kelvin
  • Zero Insertion Force Clam Shell Design
  • Non-Magnetic Socket Options Available
  • Accurate, Tightly-controlled Package Fit
  • Optional Case Contacts
  • Optional Heat Sinking
  • Fine Pitches
  • Contact Wiping Action for Reliable Connection

CATALOG

Categories: , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

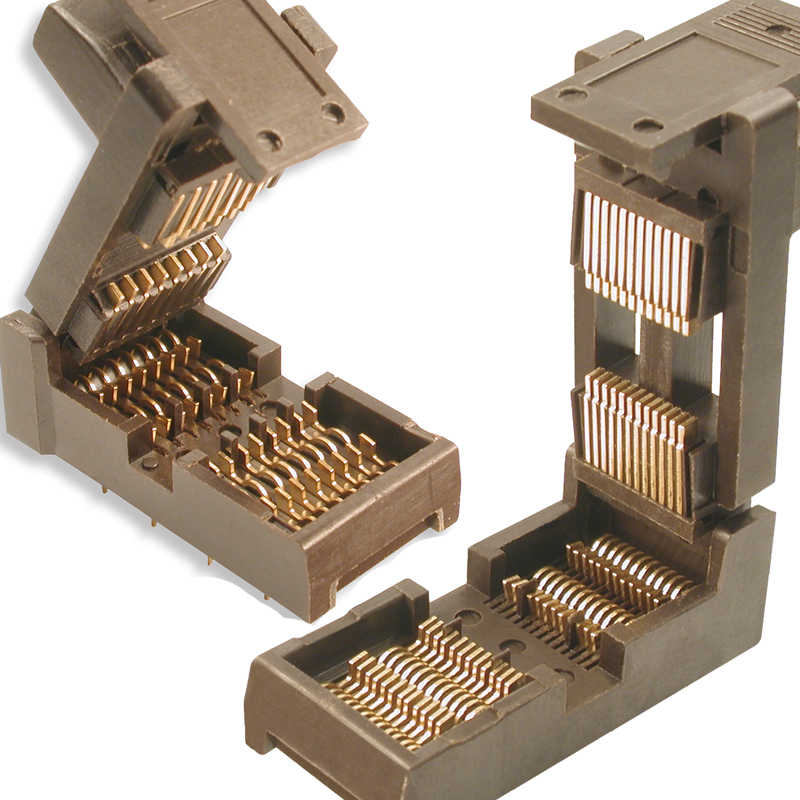

Gull Wing Sockets
Design Features

Loranger International Corporation designs and manufactures burn-in and test sockets, printed circuit boards and environmental chamber systems for the electronics manufacturing industry.
Loranger International Corporation sockets are optimized for today’s small, fine pitch electronic packages, as well as for older style packages. Loranger International Corporation burn-in and test sockets are used worldwide in programs including defense, guidance, automotive, music, communication and space exploration.

P/N Pkg Type Pkg Name I/O Pitch (in) Pkg
Body L (in)		 Pkg
Body W (in)		 Pkg
H/T (in)		 Socket Style
04100 081 6215 Micro Path Micro Path 8 0.040 0.360 0.130 0.180 ClamShell
04165 081 X217 GULL WING MSOP-8 9 0.026 0.118 0.118 0.038 ClamShell
04320 171 6217 Gull Wing MSE MSOP DAP 17 0.020 0.159 0.118 0.039 ClamShell
04333 101 6215 Micro Max MIRO MAX 10 0.020 0.118 0.118 0.040 ClamShell
04333 101 6218 Mini SOIC MINI SOIC 10 0.020 0.118 0.118 0.043 ClamShell
04333 101 6218A TSSOP 10L-TSSOP 10 0.020 0.118 0.118 0.040 ClamShell
04333 111 6215 MSOP 10L-TSSOP 11 0.020 0.118 0.118 0.037 ClamShell
04333 111 6218A TSSOP 10L-TSSOP 11 0.020 0.118 0.118 0.037 ClamShell
04335 081 6215 Micro Micro 8 8 0.026 0.118 0.118 0.040 ClamShell
04335 081 6218A Mini SOIC MINI SOIC 8 0.026 0.118 0.118 0.038 ClamShell
04335 081 6218B Mini SOIC MINI SOIC 8 0.026 0.118 0.118 0.038 ClamShell
04335 081 6218C Mini SOIC MINI SOIC 8 0.026 0.118 0.118 0.040 ClamShell
04335 131 6215 Gull Wing MSE MSOP DAP 13 0.026 0.159 0.118 0.039 ClamShell
04336 161 X217 TSSOP TSSOP-8 8 0.026 0.118 0.118 0.039 ClamShell
04338 081 6215 DCT / SSOP DCT SSOP 8 0.026 0.116 0.110 0.043 ClamShell
03875 161 6215 MSOP HP MSOP 16 0.025 0.193 0.108 0.052 ClamShell
03875 161 6218A NAIO NAIO-10 10 0.025 0.118 0.108 0.055 ClamShell
04328 041 6217 Gull Wing SOD-123 2 0.000 0.063 0.106 0.045 ClamShell
04320 081 6217 SOIC 8L-SOIC 8 0.020 0.079 0.092 0.030 ClamShell
04331 121 6218A SOT SOT-23-6 6 0.037 0.134 0.087 0.052 ClamShell
04320 141 X217 Gull Wing SOT 23 Thin 14 0.020 0.165 0.079 0.041 ClamShell
Q0402 171 X218A SOIC SOIC 16 0.020 0.168 0.079 0.037 ClamShell
04329 121 6218A SOT-23 3 0.038 0.118 0.078 0.039 ClamShell
04140 061 6217 Powermite POWERMITE 2 0.000 0.075 0.075 0.040 ClamShell
04140 061 6218A Powermite POWERMITE 2 0.000 0.075 0.075 0.040 ClamShell
04332 121 X218A SOT 5 0.037 0.117 0.075 0.039 ClamShell
04332 121 X218B SOT 3 0.037 0.118 0.075 0.039 ClamShell
03295 121 X218B Gull Wing SOT23 6 0.037 0.114 0.071 0.035 ClamShell
04321 081 6217 TSOP TSOP8 8 0.020 0.079 0.069 0.041 ClamShell
04332 041 6217 SOD-323 2 0.000 0.049 0.067 0.037 ClamShell
04334 121 6218E SOT SOT 6 0.037 0.118 0.067 0.047 ClamShell
04331 101 6217 SOT SOT-23-5 5 0.037 0.115 0.065 0.048 ClamShell
04331 121 6217 SOT-23-6 6 0.037 0.115 0.065 0.048 ClamShell
04331 121 6218B SOT-23-6, TSOP-6 6 0.037 0.116 0.065 0.041 ClamShell
04331 121 6218C SOT-23-6 6 0.037 0.115 0.065 0.052 ClamShell
04331 121 X218F SOT-23-6 6 0.037 0.115 0.065 0.049 ClamShell
04334 081 6215 SOT SOT-23 8 0.026 0.114 0.065 0.047 ClamShell
04334 121 6215 SOT-23, -24, -25, -26 6 0.037 0.114 0.065 0.045 ClamShell
04334 121 6218 SOT-23, -24, -25, -26 6 0.037 0.114 0.065 0.045 ClamShell
04334 121 6218B SOT-23 6 0.037 0.114 0.065 0.047 ClamShell
04334 121 6218C SOT-23, -24, -25, -26 6 0.037 0.117 0.064 0.038 ClamShell
04336 081 6215 SOT SOT-23 8 0.026 0.114 0.064 0.046 ClamShell
03295 121 6217 TSOP TSOP-6-6-1 6 0.037 0.114 0.063 0.041 ClamShell
03295 121 6218A TSOP TSOP-6-6-1 4 0.037 0.114 0.063 0.041 ClamShell
03332 101 X215 SOT23 5 0.038 0.114 0.063 0.045 ClamShell
04233 081 6215 SOIC SOIC 8 WIDE LEAD 8 0.024 0.114 0.063 0.041 ClamShell
04234 101 6215 SOT-595 5 0.037 0.114 0.063 0.043 ClamShell
04331 121 6218D SOT-23-6 3 0.037 0.114 0.063 0.028 ClamShell
04331 121 X218E SOT-23-3 3 0.037 0.115 0.063 0.045 ClamShell
04334 081 6218B SOIC 8L-SOIC 8 0.024 0.114 0.063 0.041 ClamShell
