Description

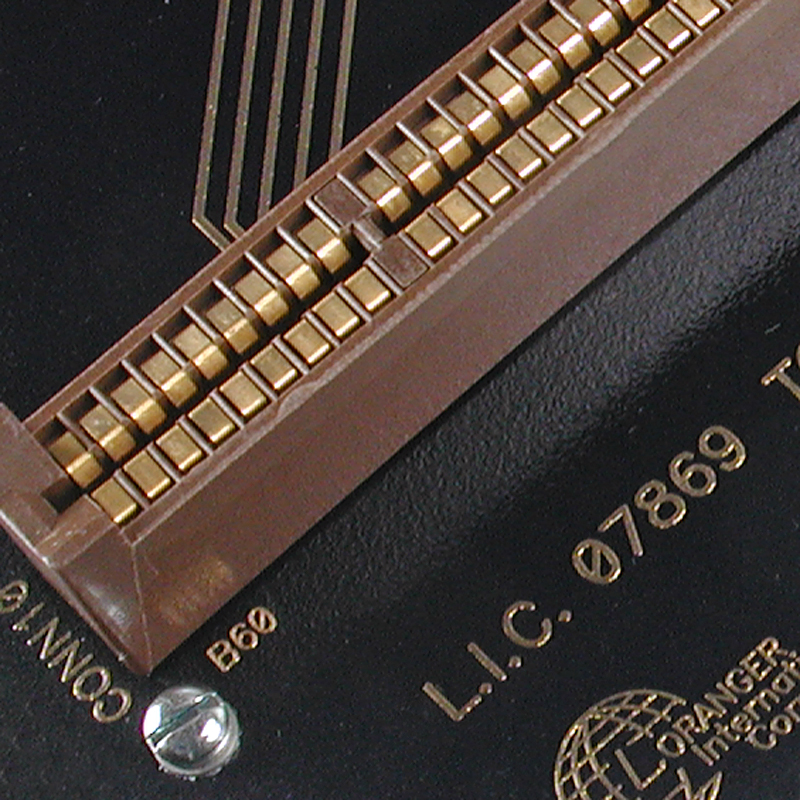

Edge Connectors Sockets
Design Features
Loranger International Corporation designs and manufactures burn-in and test sockets, printed circuit boards and environmental chamber systems for the electronics manufacturing industry.
Loranger International Corporation sockets are optimized for today’s small, fine pitch electronic packages, as well as for older style packages. Loranger International Corporation burn-in and test sockets are used worldwide in programs including defense, guidance, automotive, music, communication and space exploration.
| P/N | Pkg Type | I/O | Pitch (in) | Socket L (in) | Socket W (in) | Socket H (in) |
| 03199 H22 6218E | PCB | 98 | 0.100 | 9.560 | 0.460 | 0.760 |
| 03199 H22 6218F | PCB | 131 | 0.100 | 9.560 | 0.460 | 0.760 |
| 03199 H22 6218J | PCB | 168 | 0.100 | 9.560 | 0.460 | 0.750 |
| 03199 H22 X218K | PCB | 98 | 0.100 | 9.560 | 0.460 | 0.750 |
| 03199 H22 X218L | PCB | 66 | 0.100 | 9.560 | 0.460 | 0.750 |
| 03989 111 6218A | Connector | 7 | 0.156 | 3.150 | 0.700 | 1.030 |
| 03989 111 6218B | Connector | 7 | 0.156 | 3.150 | 0.700 | 1.030 |
| 03989 111 6218C | Connector | 7 | 0.156 | 3.150 | 0.700 | 1.030 |
| 03989 111 X218D | Connector | 5 | 0.000 | 3.150 | 0.700 | 1.470 |
