Description
BGA/CSP (Ball Grid Array/Chip Scale Package)
Design Features

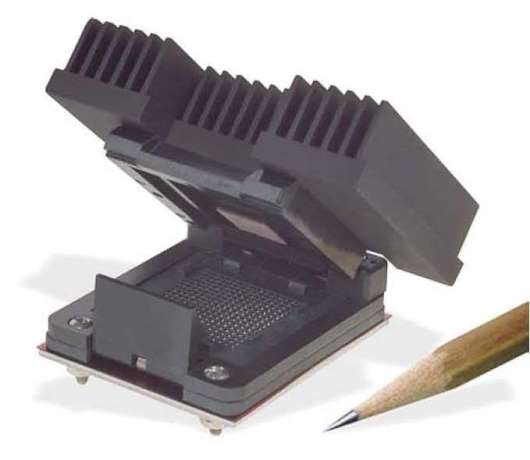

Designed to Connect to Packages for Test and Burn-in Accommodating Variations in Package Thicknesses, Surface-mount Sockets for Pitches 0.25mm and greater, 25 Grams per Contact Normal Force Assures Good Contact with High Hertz-force Concentration, Socket Contact Wipes Diameter of Solder Ball, Lowest Profile Design and Smallest Footprint Increase Board Density, Surface-mount Design “Irons Out” Coplanarity Issues and Reduces Need for Extra Board Layers, Accommodates Ceramic, Plastic Over-molded, Glob Top, Tape, Metal Heat Sink and Super BGA Packages, Handler Compatible via Guideplate Adapter Kit.
| P/N | Pkg Type |
I/O | Pitch (mm) | Pkg Body L (mm) |
Pkg Body W (mm) |
Pkg H/T (mm) |
Array | Socket Style |
| 063051022J6617 | BGA/CSP | 40 | 0.65 | 6.30 | 5.20 | 1.03 | 4 x 5, 4 o | ClamShell |
| 065026040U6617 | BGA/CSP | 40 | 0.65 | 6.50 | 2.60 | 0.64 | 10 x 4 | ClamShell |
| 065062131J6617 | BGA/CSP | 131 | 0.50 | 6.50 | 6.20 | 0.91 | 13 X 14, D | ClamShell |
| 070065112P6617 | BGA/CSP | 112 | 0.50 | 7.00 | 6.50 | 0.52 | 13 x 14, D | ClamShell |
| 070SQ 048U1618A | BGA/CSP | 48 | 0.75 | 7.00 | 7.00 | 1.24 | 6 x 8 | ClamShell |
| 070SQ 048U6617 | BGA/CSP | 48 | 0.80 | 7.00 | 7.00 | 1.55 | 7 x 7, D | ClamShell |
| 070SQ 048U6618B | BGA/CSP | 48 | 0.75 | 7.00 | 7.00 | 1.10 | 6 x 8 | ClamShell |
| 070SQ 048U6618C | BGA/CSP | 48 | 0.80 | 7.00 | 7.00 | 1.40 | 7 x 7, D | ClamShell |
| 070SQ 049U6617 | BGA/CSP | 49 | 0.80 | 7.00 | 7.00 | 1.20 | 7 x 7 | ClamShell |
| 070SQ 049U6618A | FPBGA | 49 | 0.80 | 7.00 | 7.00 | 1.45 | 7 x 7 | ClamShell |
| 070SQ 049U6618B | BGA/CSP | 49 | 0.80 | 7.00 | 7.00 | 1.40 | 7 x 7 | ClamShell |
| 070SQ 064U6617 | BGA/CSP | 64 | 0.80 | 7.00 | 7.00 | 1.62 | 8 x 8 | ClamShell |
| 070SQ 071U6617 | BGA/CSP | 71 | 0.65 | 7.00 | 7.00 | 0.95 | 9 x 9, D | ClamShell |
| 070SQ 080U6617 | BGA/CSP | 80 | 0.50 | 7.00 | 7.00 | 1.45 | 12 x 12, D | ClamShell |
| 070SQ 084U6617 | BGA/CSP | 84 | 0.50 | 7.00 | 7.00 | 1.25 | 12 x 12, D | ClamShell |
| 070SQ 100J6618B | BGA/CSP | 100 | 0.65 | 7.00 | 7.00 | 1.07 | 10 x 10 | ClamShell |
| 070SQ 100U6617 | BGA/CSP | 100 | 0.50 | 7.00 | 7.00 | 1.10 | 10 x 10 | ClamShell |
| 070SQ 100U6618A | BGA/CSP | 100 | 0.65 | 7.00 | 7.00 | 1.24 | 10 x 10 | ClamShell |
| 070SQ 100U6618B | BGA/CSP | 100 | 0.65 | 7.00 | 7.00 | 1.05 | 10 x 10 | ClamShell |
| 070SQ 112U6617 | TFBGA | 112 | 0.50 | 7.00 | 7.00 | 1.02 | 12 x 12, D | ClamShell |
| 070SQ 113U6617 | BGA/CSP | 113 | 0.50 | 7.00 | 7.00 | 1.15 | 12 x 12, D | ClamShell |
| 070SQ 124U6617 | FCBGA | 124 | 0.50 | 7.00 | 7.00 | 1.00 | 12 x 12, D | ClamShell |
| 070SQ 144U6617 | BGA/CSP | 143 | 0.50 | 7.00 | 7.00 | 1.00 | 12 x 12, D | ClamShell |
| 070SQ 144U6618A | BGA/CSP | 68 | 0.50 | 7.00 | 7.00 | 1.09 | 12 x 12, D | ClamShell |
| 070SQ 154U6617 | BGA/CSP | 154 | 0.50 | 7.00 | 7.00 | 1.04 | 13 x 13 | ClamShell |
| 070SQ 169J6617 | BGA/CSP | 169 | 0.50 | 7.00 | 7.00 | 0.97 | 13 x 13 | ClamShell |
| 070SQ 169U6617 | BGA/CSP | 169 | 0.50 | 7.00 | 7.00 | 1.15 | 13 x 13 | ClamShell |
| 070SQ 169U6618A | BGA/CSP | 169 | 0.50 | 7.00 | 7.00 | 1.12 | 13 x 13 | ClamShell |
| 070SQU143U6618 | BGA/CSP | 143 | 0.50 | 7.00 | 7.00 | 1.00 | 12 x 12, D | ClamShell |
| 070SQU144U6618 | BGA/CSP | 144 | 0.50 | 7.00 | 7.00 | 1.00 | 12 x 12, D | ClamShell |
| 072063044U6617 | BGA/CSP | 44 | 0.80 | 7.26 | 6.31 | 0.84 | 6 x 8, D | ClamShell |
| 074071078J6617 | BGA/CSP | 78 | 0.00 | 7.43 | 7.19 | 0.76 | 10 x 8, D | ClamShell |
| 076070019J6617 | BGA/CSP | 52 | 0.80 | 7.60 | 7.00 | 1.55 | 8 x 9, D | ClamShell |
| 076070019J6618A | BGA/CSP | 52 | 0.80 | 7.60 | 7.00 | 1.36 | 8 x 9, D | ClamShell |
| 076070019U6617 | BGA/CSP | 19 | 0.80 | 7.60 | 7.00 | 1.55 | 6 x 7, D | ClamShell |
| 078057046U6617 | BGA/CSP | 46 | 0.75 | 7.87 | 5.76 | 0.91 | 6 x 8, D | ClamShell |
| 080050135J6617 | BGA/CSP | 135 | 0.50 | 8.00 | 5.00 | 0.75 | 15 x 9 | ClamShell |
| 080060024J6617 | BGA/CSP | 24 | 1.00 | 8.00 | 6.00 | 1.04 | 4 x 6 | ClamShell |
| 080070040U6617 | BGA/CSP | 46 | 0.50 | 8.00 | 7.00 | 1.10 | 12 x 10, D | ClamShell |
| 080070046U6617 | BGA/CSP | 46 | 0.75 | 8.00 | 7.00 | 1.10 | 6 x 8, D | ClamShell |
| 080070048U6618A | BGA/CSP | 48 | 0.75 | 8.00 | 7.00 | 1.20 | 6 x 8 | ClamShell |
| 080SQ 043B6617 | BGA/CSP | 43 | 1.00 | 8.00 | 8.00 | 2.60 | 7 x 7, D | ClamShell |
| 080SQ 049B6617 | BGA/CSP | 49 | 1.00 | 8.00 | 8.00 | 1.30 | 7 x 7 | ClamShell |
| 080SQ 064J6617 | BGA/CSP | 64 | 0.80 | 8.00 | 8.00 | 1.19 | 9 x 9, D | ClamShell |
| 080SQ 064U6617 | BGA/CSP | 64 | 0.80 | 8.00 | 8.00 | 1.37 | 8 x 8 | ClamShell |
| 080SQ 064U6618A | BGA/CSP | 64 | 0.80 | 8.00 | 8.00 | 1.10 | 8 x 8 | ClamShell |
| 080SQ 064U6618B | SSBGA | 64 | 0.80 | 8.00 | 8.00 | 0.90 | 8 x 8 | ClamShell |
| 080SQ 064U6618C | BGA/CSP | 64 | 0.80 | 8.00 | 8.00 | 1.65 | 8 x 8 | ClamShell |
| 080SQ 065J6617 | BGA/CSP | 65 | 0.80 | 8.00 | 8.00 | 1.19 | 8 x 9, D | ClamShell |
| 080SQ 072U6617 | BGA/CSP | 72 | 0.80 | 8.00 | 8.00 | 1.10 | 9 x 9, D | ClamShell |
