DT-E-FS Series 8Gbps equivalent Transmission Compatible 0.5mm Pitch Floating Connector – with Power Contact and High Stack Type (Receptacle Height 10mm Type) · KEL

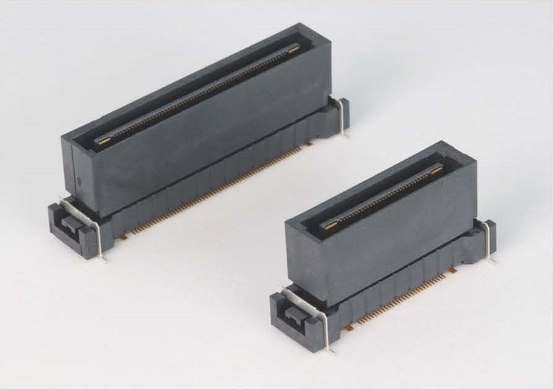

DT-E-FS Series 8Gbps equivalent Transmission Compatible 0.5mm Pitch Floating Connector – with Power Contact and High Stack Type (Receptacle Height 10mm Type)

▶ High-speed serial transmission equivalent to 8Gbps
▶ With 4 power terminals (6.0A per contact)
▶ The floating amount is secured at ±1.2mm in the XY direction.
▶ Highly reliable design with effective mating length of 1.5mm.
▶ With or without positioning posts.
▶ Six types of signal contacts are available, ranging from 30 to 120pins.
*Currently considering adding 140 pins. If you have any requests, please contact our sales representative.
▶ The connection type is stacked mating.
▶ Stack heights range from 18mm to 30mm.

【Type】 Receptacle DT00E：Without positioning posts　DT01E：With positioning posts

【Number of contacts】 030：30pin,　040：40pin,　060：60pin,　080：80pin,　100：100pin,　120：120pin

【Contact tail style】 FS： Straight

【Stacked hight】10：10 mm type

【Anti-dust tape】T： With anti-dust tape

DT-E-FS Series

Categories: , , , Tags: , , , , , , , , ,

Description

Floating structure:

When the connector is mounted on the printed circuit board, a position error in the two directions of horizontal and vertical (XY direction) may occur at both connectors. In addition, if each printed circuit board is fixed to a case by screws after mating connectors, the connectors may have to compensate for the position error because a gap occurs during screwing the printed circuit board. A connector having a tolerance to compensate for such an error or gap caused by vibration is called a floating connector. The DT-E-FS series is a 0.5mm fine pitch connector with ±1.2mm floating structure and ensures sufficient compensation for position errors.
