8600 Series 0.635mm Pitch Connector · KEL

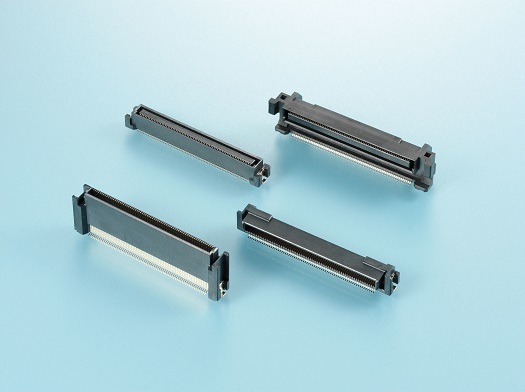

8600 Series 0.635mm Pitch Connector

Compact board-to-board connector, meeting the needs for multi pin count applications.
▶ High reliable design with effective mating length of 2mm (0.079’’).
▶ Horizontal, Vertical and Stacked mating combinations.
▶ Designed to prevent mis-insertion.
▶ The plug connector has a box-shaped construction, with highly reliable contact performance.
▶ Insulator protects the contacts from damage or breakage.
▶ Robust construction durable for use with industrial equipment .
▶ Can be automatically or manually placed.
▶ SMT solder joint.
▶ Coplanarity 0.1mm.

Number of contacts: (L type) 52 pin, 120 pin, 140 pin, 160 pin
(FS type) 60 pin, 120 pin, 140 pin, 160 pin (Only 8601-160 FSJ-E-P)
(FL type) 60 pin, 120 pin, 140 pin, 160 pin, 200 pin

Type: 8601 – Receptacle · PN’s: 8601-052L, 8601-120L, 8601-140L, 8601-160L

Type: 8611 – Plug · PN’s: 8611-052S, 8611-120S, 8611-140S, 8611-160S, 8611-052S-P, 8611-120S-P, 8611-140S-P, 8611-160S-P

8600 Series

Categories: , , Tags: , , ,

Description

8600 Series 0.635mm Pitch 2 piece Connector

Series name Description Pitch No. pin RoHS
8601-200FL 0.635mm Pitch 2 piece Connector, Receptacle, SMT Right angle, 200 pin 0.635mm 200 RoHS Compliant
8601-160FL 0.635mm Pitch 2 piece Connector, Receptacle, SMT Right angle, 160 pin 0.635mm 160 RoHS Compliant
8601-140FL 0.635mm Pitch 2 piece Connector, Receptacle, SMT Right angle, 140 pin 0.635mm 140 RoHS Compliant
8601-120FL 0.635mm Pitch 2 piece Connector, Receptacle, SMT Right angle, 120 pin 0.635mm 120 RoHS Compliant
8601-060FL 0.635mm Pitch 2 piece Connector, Receptacle, SMT Right angle, 60 pin 0.635mm 60 RoHS Compliant
8601-140FS-I 0.635mm Pitch 2 piece Connector, Receptacle, SMT Straight Selective mating height, With posts, Without Pick & Place, With SMT Retention clips, 140 pin 0.635mm 140 RoHS Compliant
8601-060FS-I 0.635mm Pitch 2 piece Connector, Receptacle, SMT Straight Selective mating height, With posts, Without Pick & Place, With SMT Retention clips, 60 pin 0.635mm 60 RoHS Compliant
8601-140FS-I-P 0.635mm Pitch 2 piece Connector, Receptacle, SMT Straight Selective mating height, With posts, With Pick & Place, With SMT Retention clips, 140 pin 0.635mm 140 RoHS Compliant
8601-120FS-I-P 0.635mm Pitch 2 piece Connector, Receptacle, SMT Straight Selective mating height, With posts, With Pick & Place, With SMT Retention clips, 120 pin 0.635mm 120 RoHS Compliant
8601-060FS-I-P 0.635mm Pitch 2 piece Connector, Receptacle, SMT Straight Selective mating height, With posts, With Pick & Place, With SMT Retention clips, 60 pin 0.635mm 60 RoHS Compliant
8601-140FS-A-P 0.635mm Pitch 2 piece Connector, Receptacle, SMT Straight Selective mating height, With posts, With Pick & Place, With SMT Retention clips, 140 pin 0.635mm 140 RoHS Compliant
8601-120FS-A-P 0.635mm Pitch 2 piece Connector, Receptacle, SMT Straight Selective mating height, With posts, With Pick & Place, With SMT Retention clips, 120 pin 0.635mm 120 RoHS Compliant
8601-060FS-A-P 0.635mm Pitch 2 piece Connector, Receptacle, SMT Straight Selective mating height, With posts, With Pick & Place, With SMT Retention clips, 60 pin 0.635mm 60 RoHS Compliant
8601-160L 0.635mm Pitch 2 piece Connector, Receptacle, SMT Right angle, With posts, With SMT Retention clips, 160 pin 0.635mm 160 RoHS Compliant
8601-140L 0.635mm Pitch 2 piece Connector, Receptacle, SMT Right angle, With posts, With SMT Retention clips, 140 pin 0.635mm 140 RoHS Compliant
8601-120L 0.635mm Pitch 2 piece Connector, Receptacle, SMT Right angle, With posts, With SMT Retention clips, 120 pin 0.635mm 120 RoHS Compliant
8601-052L 0.635mm Pitch 2 piece Connector, Receptacle, SMT Right angle, With posts, With SMT Retention clips, 50 pin 0.635mm 52 RoHS Compliant
8601-160FSJ-E-P 0.635mm Pitch 2 piece Connector, Receptacle, SMT Straight Selective mating height, With posts, With Pick & Place, With SMT Retention clips, 160 pin 0.635mm 160 RoHS Compliant



Series name Description Pitch No. pin RoHS
8611H-200FL 0.635mm Pitch 2 piece Connector, Plug, SMT Right angle, 200 pin 0.635mm 200 RoHS Compliant
8611H-160FL 0.635mm Pitch 2 piece Connector, Plug, SMT Right angle, 160 pin 0.635mm 160 RoHS Compliant
8611H-140FL 0.635mm Pitch 2 piece Connector, Plug, SMT Right angle, 140 pin 0.635mm 140 RoHS Compliant
8611H-120FL 0.635mm Pitch 2 piece Connector, Plug, SMT Right angle, 120 pin 0.635mm 120 RoHS Compliant
8611H-060FL 0.635mm Pitch 2 piece Connector, Plug, SMT Right angle, 60 pin 0.635mm 60 RoHS Complian
