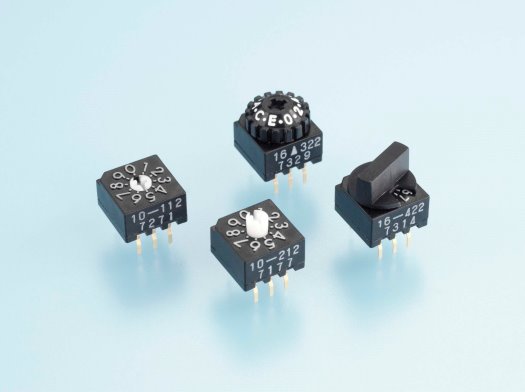

KDS Series Rotary DIP Code Switch

▶ Because its lead pitch is consistent with standard ICs, the products can be mounted, in series, on an IC-pitch printed circuit board.
▶ The design allows consolidation with other electronic components, allowing high-density packaging.
▶ Mounting efficiency has been further enhanced through the rounding of tail tips.
▶ Kinked tails prevent lifting during soldering.
▶ Binary decimal (10 positions) and hexadecimal (16 positions),
both having real and complimentary codes.
▶ 4 different rotor styles; flat, indicator, knob and shaft style.
Flat type: It is operated using the tip of a (screw driver width : 3mm).
Indicator type: It is operated using the tip of a screwdriver. The right-angle design also facilitates operation from the side.
Knob type: It is operable by hand.
Shaft type: It is operated using the tip of a screwdriver (screw driver width : 3mm to 5mm). Furthermore, the panel surface and control section can be arranged in parallel.

Type: KDS10, Rotary DIP code switch, Binary Decimal

PN’s: KDS10-112-F, KDS10-122-F, KDS10-212-F, KDS10-222-F, KDS10-312-F, KDS10-322-F, KDS10-412-F, KDS10-412R-F, KDS10-412G-F, KDS10-422-F, KDS10-422R-F, KDS10-422G-F, KDS10-512-F, KDS10-522-F

Type: KDS16, Rotary DIP code switch, Binary Hexadecimal

PN’s: KDS16-112-F, KDS16-122-F, KDS16-212-F, KDS16-222-F, KDS16-312-F, KDS16-322-F, KDS16-412-F, KDS16-412R-F, KDS16-412G-F, KDS16-422-F, KDS16-422R-F, KDS16-422G-F, KDS16-512-F, KDS16-522-F

Type: 1 Flat Type / 2 Shaft Type / 3 Indicator Type / 4 Knob Type

KDS SERIES

Categories: , , Tags: , , , , , , , ,

Description

Part Number Description
KDS10-112-F Rotary DIP code switch, Binary Decimal, Flat Type, Real Code, Color : Black
KDS10-122-F Rotary DIP code switch, Binary Decimal, Flat Type, Compliment Code, Color : Black
KDS10-212-F Rotary DIP code switch, Binary Decimal, Shaft Type, Real Code, Color : Black
KDS10-222-F Rotary DIP code switch, Binary Decimal, Shaft Type, Compliment Code, Color : Black
KDS10-312-F Rotary DIP code switch, Binary Decimal, Indicator Type, Real Code, Color : Black
KDS10-322-F Rotary DIP code switch, Binary Decimal, Indicator Type, Compliment Code, Color : Black
KDS10-412-F Rotary DIP code switch, Binary Decimal, Knob Type, Real Code, Color : Black
KDS10-412G-F Rotary DIP code switch, Binary Decimal, Knob Type, Real Code, Color : Green
KDS10-412R-F Rotary DIP code switch, Binary Decimal, Knob Type, Real Code, Color : Red
KDS10-422-F Rotary DIP code switch, Binary Decimal, Knob Type, Compliment Code, Color : Black
KDS10-422G-F Rotary DIP code switch, Binary Decimal, Knob Type, Compliment Code, Color : Green
KDS10-422R-F Rotary DIP code switch, Binary Decimal, Knob Type, Compliment Code, Color : Red
KDS10-512-F Rotary DIP code switch, Binary Decimal, Indicator Type, Real Code, DIP, Color : Black
KDS10-522-F Rotary DIP code switch, Binary Decimal, Indicator Type, Compliment Code, DIP, Color : Black
KDS16-112-F Rotary DIP code switch, Binary Hexadecimal, Flat Type, Real Code, Color : Black
KDS16-122-F Rotary DIP code switch, Binary Hexadecimal, Flat Type, Compliment Code, Color : Black
KDS16-212-F Rotary DIP code switch, Binary Hexadecimal, Shaft Type, Real Code, Color : Black
KDS16-412-F Rotary DIP code switch, Binary Hexadecimal, Knob Type, Real Code, Color : Black
KDS16-412G-F Rotary DIP code switch, Binary Hexadecimal, Knob Type, Real Code, Color : Green
KDS16-412R-F Rotary DIP code switch, Binary Hexadecimal, Knob Type, Real Code, Color : Red
KDS16-422-F Rotary DIP code switch, Binary Hexadecimal, Knob Type, Compliment Code, Color : Black
KDS16-422G-F Rotary DIP code switch, Binary Hexadecimal, Knob Type, Compliment Code, Color : Green
KDS16-422R-F Rotary DIP code switch, Binary Hexadecimal, Knob Type, Compliment Code, Color : Red
KDS16-512-F Rotary DIP code switch, Binary Hexadecimal, Indicator Type, Real Code, DIP, Color : Black
