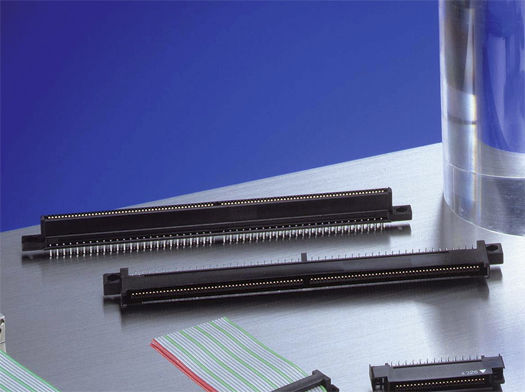

8806 and 8807 Series 1.27mm Pitch Connector Multi-Pin Type

▶ With a completely-independent two-point contact system, a stable contact pressure is maintained at all times.
▶ Low insertion force and withdrawal force.
▶ With a guide mechanism, smooth mating can be achieved.
▶ Wide variations in the number of contacts (120, 140, 160, 180 and 200 pins) are available.
▶ For 200 pin connector, both insertion and withdrawl force are low at 134.4N and 64.7N respectively.

Type: 8806 Receptacle with flanges and without hooks · PN’s: 8806-120-170S-F, 8806-140-170S-F, 8806-160-170S-F, 8806-180-170S-F, 8806-200-170S-F, 8806-120-170L-F, 8806-140-170L-F, 8806-160-170L-F, 8806-180-170L-F, 8806-200-170L-F, 8806-120-170SD-F, 8806-140-170SD-F, 8806-160-170SD-F, 8806-180-170SD-F, 8806-200-170SD-F, 8806-120-170LD-F, 8806-140-170LD-F, 8806-160-170LD-F, 8806-180-170LD-F, 8806-200-170LD-F

Type: 8807 Without flanges and with hooks · PN’s: 8807-120-170S-F, 8807-140-170S-F, 8807-160-170S-F, 8807-180-170S-F, 8807-200-170S-F, 8807-120-170L-F, 8807-140-170L-F, 8807-160-170L-F, 8807-180-170L-F, 8807-200-170L-F, 8807-120-170SD-F, 8807-140-170SD-F, 8807-160-170SD-F, 8807-180-170SD-F, 8807-200-170SD-F, 8807-120-170LD-F, 8807-140-170LD-F, 8807-160-170LD-F, 8807-180-170LD-F, 8807-200-170LD-F

Type: 8816 With flanges and without hooks · PN’s: 8816-120-170S-F, 8816-140-170S-F, 8816-160-170S-F, 8816-180-170S-F, 8816-200-170S-F, 8816-120-170L-F, 8816-140-170L-F, 8816-160-170L-F, 8816-180-170L-F, 8816-200-170L-F, 8816-120-170SD-F, 8816-140-170SD-F, 8816-160-170SD-F, 8816-180-170SD-F, 8816-200-170SD-F, 8816-120-170LD-F, 8816-140-170LD-F, 8816-160-170LD-F, 8816-180-170LD-F, 8816-200-170LD-F

Type: 8817 Without flanges and with hooks · PN’s: 8817-120-170S-F, 8817-140-170S-F, 8817-160-170S-F, 8817-180-170S-F, 8817-200-170S-F, 8817-120-170L-F, 8817-140-170L-F, 8817-160-170L-F, 8817-180-170L-F, 8817-200-170L-F, 8817-120-170SD-F, 8817-140-170SD-F, 8817-160-170SD-F, 8817-180-170SD-F, 8817-200-170SD-F, 8817-120-170LD-F, 8817-140-170LD-F, 8817-160-170LD-F, 8817-180-170LD-F, 8817-200-170LD-F

8806 – 8807 Series
