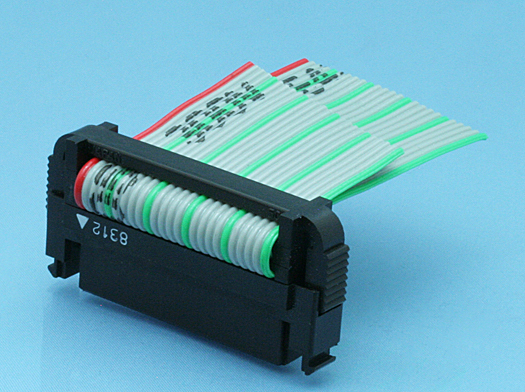

8822E and 8822 1.27mm Pitch Connector for 1.27mm Pitch Flat Cable

▶ With a completely-independent two-point contact system, a stable contact pressure is maintained at all times.
▶ Low insertion and withdrawal force.
▶ Can be used with MIL-STD type IDC connectors (KEL 6100, 6200, 6200S, 6230 Series for example).
▶ Equipped with the Eject-Lock mechanism, it allows one-handed insertion and release, and the One Touch Lock mechanism for easy handling are available.
▶ Wide variations in the number of contacts (13 sizes from 20 to 100 pins) are available.

Number of contacts: 20pin, 26pin, 30pin, 32pin, 34pin, 36pin, 40 pin, 50pin, 52pin, 60pin, 68pin, 80 pin, 100 pin

Type: 8822 Receptacle (Cable side connector) One touch lock

PN’s: 8822-020-171-F, 8822-026-171-F, 8822-030-171-F, 8822-032-171-F, 8822-034-171-F, 8822-040-171-F, 8822-050-171-F, 8822-052-171-F, 8822-060-171-F, 8822-068-171-F, 8822-020-171D-F, 8822-026-171D-F, 8822-030-171D-F, 8822-032-171D-F, 8822-034-171D-F, 8822-040-171D-F, 8822-050-171D-F, 8822-052-171D-F, 8822-060-171D-F, 8822-068-171D-F

Type: 8822E Eject lock

PN’s: 8822E-020-171-F, 8822E-026-171-F, 8822E-030-171-F, 8822E-032-171-F, 8822E-034-171-F, 8822E-036-171-F, 8822E-040-171-F, 8822E-050-171-F, 8822E-052-171-F, 8822E-060-171-F, 8822E-068-171-F, 8822E-080-171-F, 8822E-100-171-F, 8822E-020-171D-F, 8822E-026-171D-F, 8822E-030-171D-F, 8822E-032-171D-F, 8822E-034-171D-F, 8822E-036-171D-F, 8822E-040-171D-F, 8822E-050-171D-F, 8822E-052-171D-F, 8822E-060-171D-F, 8822E-068-171D-F, 8822E-080-171D-F, 8822E-100-171D-F

Type: 8830 Plug (PCB side connector) for 8822 series, without hooks

PN’s: 8830-020-170S-F, 8830-026-170S-F, 8830-030-170S-F, 8830-032-170S-F, 8830-034-170S-F, 8830-040-170S-F, 8830-050-170S-F, 8830-052-170S-F, 8830-060-170S-F, 8830-068-170S-F, 8830-020-170L-F, 8830-026-170L-F, 8830-030-170L-F, 8830-032-170L-F, 8830-034-170L-F, 8830-040-170L-F, 8830-050-170L-F, 8830-052-170L-F, 8830-060-170L-F, 8830-068-170L-F, 8830-020-170SD-F, 8830-026-170SD-F, 8830-030-170SD-F, 8830-032-170SD-F, 8830-034-170SD-F, 8830-040-170SD-F, 8830-050-170SD-F, 8830-052-170SD-F, 8830-060-170SD-F, 8830-068-170SD-F, 8830-020-170LD-F, 8830-026-170LD-F, 8830-030-170LD-F, 8830-032-170LD-F, 8830-034-170LD-F, 8830-040-170LD-F, 8830-050-170LD-F, 8830-052-170LD-F, 8830-060-170LD-F, 8830-068-170LD-F

Type: 8831 for 8822 series, with hooks (L type only)

PN’s: 8831-020-170L-F, 8831-026-170L-F, 8831-030-170L-F, 8831-032-170L-F, 8831-034-170L-F, 8831-040-170L-F, 8831-050-170L-F, 8831-052-170L-F, 8831-060-170L-F, 8831-068-170L-F, 8831-020-170LD-F, 8831-026-170LD-F, 8831-030-170LD-F, 8831-032-170LD-F, 8831-034-170LD-F, 8831-040-170LD-F, 8831-050-170LD-F, 8831-052-170LD-F, 8831-060-170LD-F, 8831-068-170LD-F

Type: 8830E for 8822E series, without hooks

PN’s: 8830E-020-170S-F, 8830E-026-170S-F, 8830E-030-170S-F, 8830E-032-170S-F, 8830E-034-170S-F, 8830E-036-170S-F, 8830E-040-170S-F, 8830E-050-170S-F, 8830E-052-170S-F, 8830E-060-170S-F, 8830E-068-170S-F, 8830E-080-170S-F, 8830E-100-170S-F, 8830E-020-170L-F, 8830E-026-170L-F, 8830E-030-170L-F, 8830E-032-170L-F, 8830E-034-170L-F, 8830E-036-170L-F, 8830E-040-170L-F, 8830E-050-170L-F, 8830E-052-170L-F, 8830E-060-170L-F, 8830E-068-170L-F, 8830E-080-170L-F, 8830E-100-170L-F, 8830E-020-170SD-F, 8830E-026-170SD-F, 8830E-030-170SD-F, 8830E-032-170SD-F, 8830E-034-170SD-F, 8830E-036-170SD-F, 8830E-040-170SD-F, 8830E-050-170SD-F, 8830E-052-170SD-F, 8830E-060-170SD-F, 8830E-068-170SD-F, 8830E-080-170SD-F, 8830E-100-170SD-F, 8830E-020-170LD-F, 8830E-026-170LD-F, 8830E-030-170LD-F, 8830E-032-170LD-F, 8830E-034-170LD-F, 8830E-036-170LD-F, 8830E-040-170LD-F, 8830E-050-170LD-F, 8830E-052-170LD-F, 8830E-060-170LD-F, 8830E-068-170LD-F, 8830E-080-170LD-F, 8830E-100-170LD-F,

Type: 8831E for 8822E series, with hooks (L type only)

PN’s: 8831E-020-170LD-F, 8831E-026-170LD-F, 8831E-030-170LD-F, 8831E-032-170LD-F, 8831E-034-170LD-F, 8831E-036-170LD-F, 8831E-036-170LD-F, 8831E-040-170LD-F, 8831E-050-170LD-F, 8831E-052-170LD-F, 8831E-060-170LD-F, 8831E-068-170LD-F, 8831E-080-170LD-F, 8831E-100-170LD-F

8822 – 8822E Series
