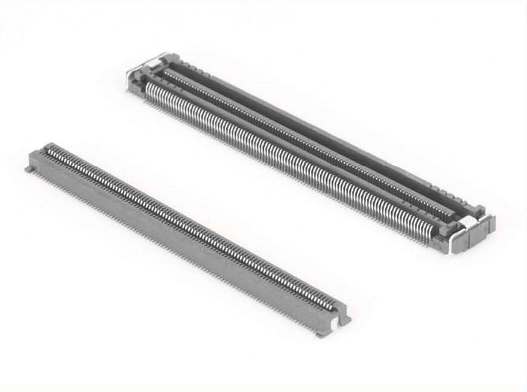

DUS Series 0.4mm Pitch Floating Connector for 16Gbps High-Speed Transmission

▶Transmission characteristics that support high-speed serial
transmission of 16 Gbps (NRZ,Sdd21:-3dB,@8GHz).
▶Stack height is 3mm.
▶Floating amount ±0.4mm in the XY directions.
▶The effective mating length of 0.8mm.
▶40, 140 and 200 pin available.
*80, 100, 120, 160 and 180 pin under planning, please ask local sales for inquiry.
▶Stacked mating is available.
▶Operating temperature up to +125℃.
▶Pattern wiring available beneath connector due to bottom side of receptacle covered with insulator.

【Type】: DUS00: Without positioning posts · PN’s: DUS00-040S-T, DUS00-140S-T, DUS00-200S-T

【Number of contacts】040：40 pin, 140：140 pin, 200：200 pin
*80, 100, 120, 160, and 180 pin are under planning, please contact our sales representative.

【Contact tail style】 S： Straight

【Anti-dust tape】T： With anti-dust tape

【Type】Plug DUS10： Without positioning posts · PN’s: DUS10-040S-3T, DUS10-140S-3T, DUS10-200S-3T

【Number of contacts】040：40 pin, 140：140 pin, 200：200 pin
*80, 100, 120, 160, and 180 pin are under planning, please contact our sales representative.

【Contact tail style】 S： Straight

【Stacked height】 3： 3 mm

【Anti-dust tape】T： With anti-dust tape

DUS Series

Categories: , , , Tags: , , , , , , , ,

Description

Floating structure:

When the connector is mounted on the printed circuit board, a position error in the two directions of horizontal and vertical (XY direction) may occur at both connectors. In addition, if each printed circuit board is fixed to a case by screws after mating connectors, the connectors may have to compensate for the position error because a gap occurs during screwing the printed circuit board. A connector having a tolerance to compensate for such an error or gap
caused by vibration is called a floating connector. The DUS series is a 0.4mm fine pitch connector with ±0.4mm floating structure and ensures sufficient compensation for position errors.
