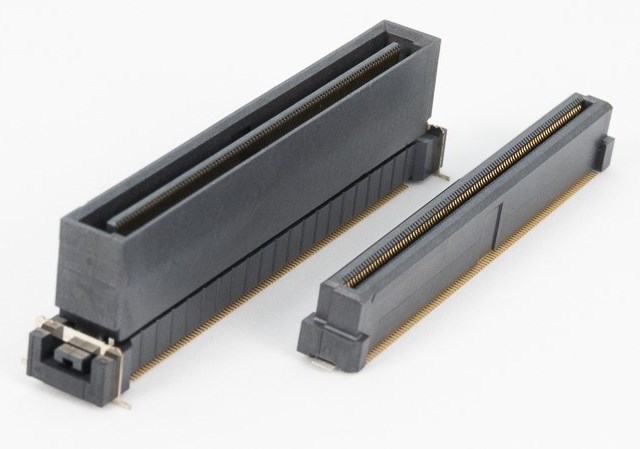

DT Series
floating connector XY direction ±1.2mm movable type
<Product overview>
– It is possible to move the floating amount ±1.2mm in the XY direction.
– Transmission characteristics meet all the requirements of SATA Rev 3.0.
number of contacts of 140 and 200 are available.
– The connection configuration is a stacked mating.
– Stack height is 20mm.
– The operating temperature corresponds to -40 ℃ to + 105 ℃.
– Samples with 200 number of contacts and 20mm stack height are available.
<Product specifications>
– Insulator materials : LCP (glass-filled) UL94V-0; Color: Black
– Contact material : Copper alloy
– Contact plating : Gold over Nickel
– Retention clip material : Copper alloy
– Retention clip plating : Tin over Nickel
– Rated current rating : 0.4A per contact
– Contact contact resistance : 80mΩ or less
– Dielectric withstand voltage : AC 200V, 1 minute
– Insulation insulation resistance : DC 250V, 100MΩ or more
– Insertion/Extraction durability : 100 times
– Operating temperature : -40°C to +105°C
<Application>
・ Electric power equipment market ・ Vehicle equipment market ・ Industrial equipment market
・ Electronic application equipment market ・ Amusement equipment market ・ Office equipment market
* Because this is a product under development, the specifications, shape, and series name are subject to change without notice.
