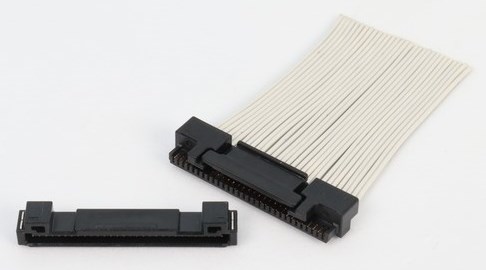

FJC Series
0.75mm Pitch Crimp Connector
<Product overview>
– 0.75mm pitch crimp connector.
– Equipped with a locking mechanism in the center of the connector body.
– There is a part that can be pushed with a finger when inserting, and the shape is designed
with workability in mind.
– 30 number of contacts are available.
– The printed circuit board side connector is a right angle type.
– low profile design with a height of 4.18mm when mated.
– Applicable cables are AWG#28 to 30 (applicable outer diameter of cable coating is Φ 0.5 to 0.6mm)
– Working temperature range from -40°C to +85°C.
– Samples with 30 number of contacts are available.
<Product specifications>
– Insulator materials : PBT, 9T Nylon
– Contact material : Copper alloy
– Contact plating : Gold over Nickel
– Retention clip material : Copper alloy
– Retention clip plating : Tin over Nickel
– Rated current rating : 1.0A per contact
contact resistance: 40mΩ or less
– Dielectric withstand voltage : AC 200V, 1 minute
– Insulation insulation resistance : DC 250V, 100MΩ or more
– Insertion/extraction durability : 30 times
– Operating temperature : -40°C to +85°C
<Application>
・Amusement equipment market ・Image equipment market ・Industrial equipment market
・Office equipment market ・Medical equipment market
*Please note that the specifications, shape, and series name are subject to change without notice as this is a product under development.
