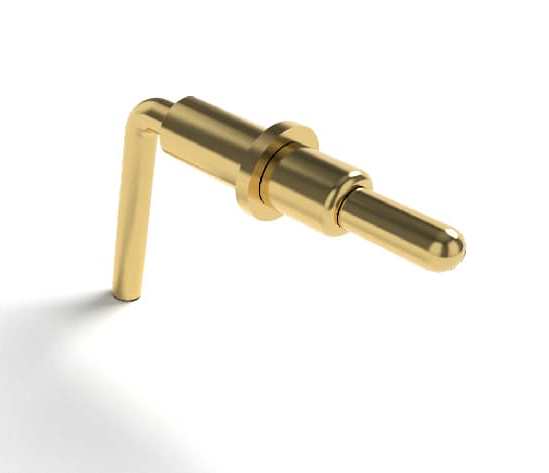

Single Pogo Pins P3533BP02 · CCP

P3533BP02

Pogo Pin Connector 3.25 mm, 1 Pin, 2.25 mm Working Height

Features:

  • Category: Single Pogo Pins
  • Part Number: P3533BP02
  • Length: 3.25
  • Working Height: 2.25
  • Pin Direction: Right Angle
  • Pin Tail With Pin Tail
  • Pin Amount: 1
  • Pitch: 0.00
  • Rated Current: 1A
  • Contact Resistance: 50 mΩ

P3533BP02

Categories: , , , Tags: , , , , , , , ,

Description

Single Pogo Pins – P3533BP02

3.25 mm, 1 Pin, 2.25 mm Working Height

Product Specifications:

Plunger Base Brass
Plunger Plating Nickel/Au
Barrel Base Brass
Barrel Plating Nickel/Au
Spring SWP
Housing n/a
Rated Current 1 A
Rated Voltage 12 V
Contact Resistance 50 mΩ
Spring Force 80 g ± 20%
Life Cycle 10000
