JST SH 1.0mm Pitch Connector Wire Harness · JIA-YI

JST CRIMP-WH-0002

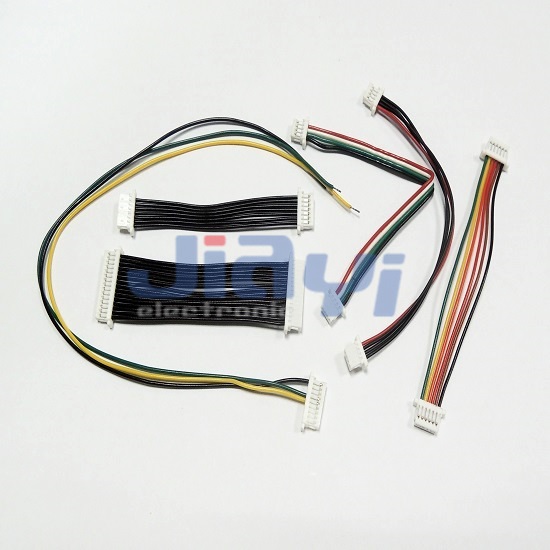

JST SH Series 1.0mm Pitch Wire to Board Crimp Type Connector Wire Harness Assembly.

JIA YI is a professional manufacturer with over 20 year experience engaging in various kinds of customized wire harnesses and cable assemblies. We have our own factory located in Taiwan and China Dong Guan. Throughout the years Jia Yi has continued to grow, increasing products, services and capabilities to our line of goods and service. Our products are applicable to the almost any devices, appliances, electronics, machines, and equipment.

Features

  • Customized wire harness and cable assembly according to customer design and demand.
  • OEM / ODM is welcome.

Specification

  • Pitch: 1.0mm
  • Pin: 2P~20P
  • Connector: original or equivalent
  • Applicable Wire: 28AWG~32AWG
  • Insulation OD: 0.4~0.8mm
  • Common Wire Type: UL1571 28AWG (PVC Jacket, 80℃ 30V) stranded wire
  • Wire Color: based on customer requirement
  • Length: based on customer requirement
  • Pin Assignment: based on customer specification

JST CRIMP-WH-0002
