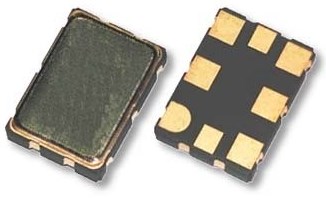

The F-series XO: Switch between 4 possible output frequencies in one product !
The F-series Crystal Oscillators provide the possibility to generate 4 possible output frequencies in the frequency range from 15MHz up to 2.1GHz. This low phase jitter XO is available in CMOS, LVPECL, LVDS and HCSL output.
These items can provide a simple solution for Multi-frequency demanding configurations in following applications:
- Optical Transport Networking up to 400G
- Backbone devices such as servers, switches,…
- 100 Gigabit Ethernet applications
- UHD video
| This evolution results in following new products: SX7CF: 4 Freq CMOSSX7EF: 4 Freq LVPECLSX7LF: 4 Freq LVDS SX7HF: 4 Freq HCSL |
Features:
- 4 output frequencies in range from 15MHz up to 2.1GHz
- Ultra low phase jitter of 0.15 ps typical
- Available supply voltages: 1.8V (not for LVPECL and LVDS), 2.5V and 3.3V
- Operating temperature ranges up to -40°C to +85°C
- Temp stability: 50ppm standard (available up to 20ppm)
- Package size: 7.0 x 5.0 mm.
