Announcement of the development of the “JI Series,” high speed transmission floating connector equivalent to PCIe 5.0.

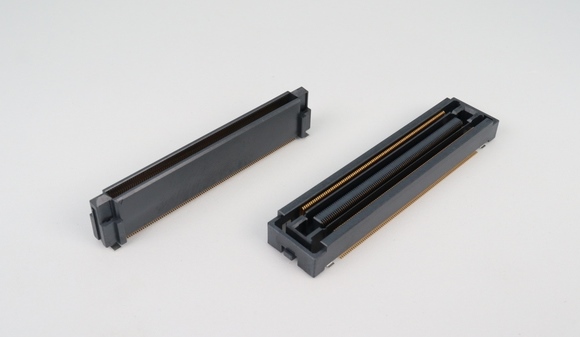

PCIe 5.0 equivalent high speed transmission floating connector “JI series”
<Product overview>
– This is a floating connector with a signal terminal pitch of 0.5mm.
– The transmission characteristics aim to be equivalent to PCIe 5.0 signals.
– The signal terminals have 20 to 200 poles.
– You can choose whether or not to include a power terminal. (Power terminal: 4-pin)
-per contact power terminal is designed to handle 6A.
-connection configuration is stacked mating.
– Stack height is 10-35mm.
-floating range is adjustable by ±1.0 mm in the XY direction (10 mm to 15 mm) and ±1.2 mm in the XY direction (20 mm to 35 mm).
– The connector’s operating temperature is -40°C to +125°C (including temperature rise due to power supply).
-effective mating length is ±1 mm.
– The lure size is ±1.5mm.
<Product specifications>
-Insulator materials: LCP (glass-filled reinforced) UL94V-0 material, color: black
-contact material: Copper alloy
-contact plating: Nickel plated base coat
(Contact area) gold-plated finish
(Tail section) gold-plated finish
-current rating: 0.3A per contact
contact resistance: 100mΩ or less
-dielectric withstand voltage: AC 200V, 1 minute
-insulation resistance: DC 250V, 100MΩ or more
-operating temperature: -40℃ to +125℃
– Insertion and removal durability: 100 times
<Application>
- Automotive equipment market: HPC, integrated ECUs, etc..
* Because this is a product under development, the specifications, shape, and series name are subject to change without notice.
