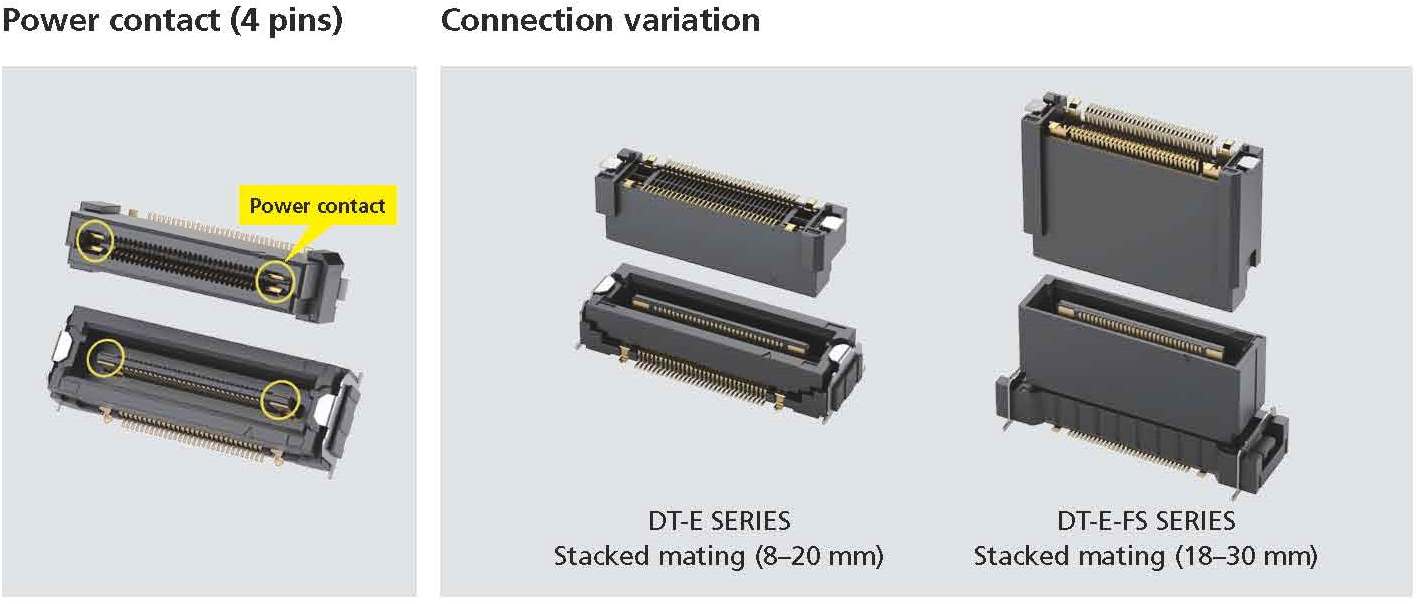

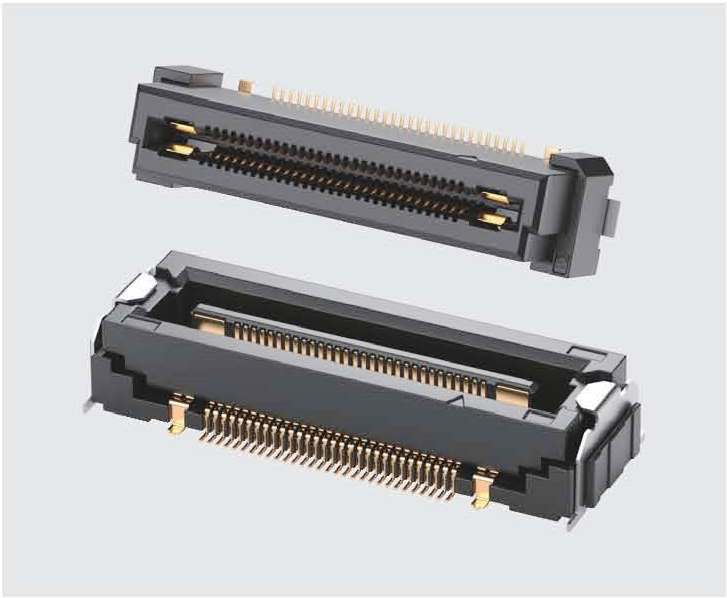

0.5 mm Pitch Floating Connector with Power Contacts / High Stack Type
New Product
Specifications:
- Rated current: 0.4 A per contact (signal contact)
(Simultaneous energization shall not exceed 100 pins.) - 6.0 A per contact (power contact)
- Contact resistance: 80 mΩ or less (signal contact) / 20 mΩ or less (power contact)
- Dielectric withstand voltage: 200 V AC for 1 minute
- Insulation resistance: 100 MΩ or more at 250 V DC
- Operating temperature range: -40°C to +105°C
