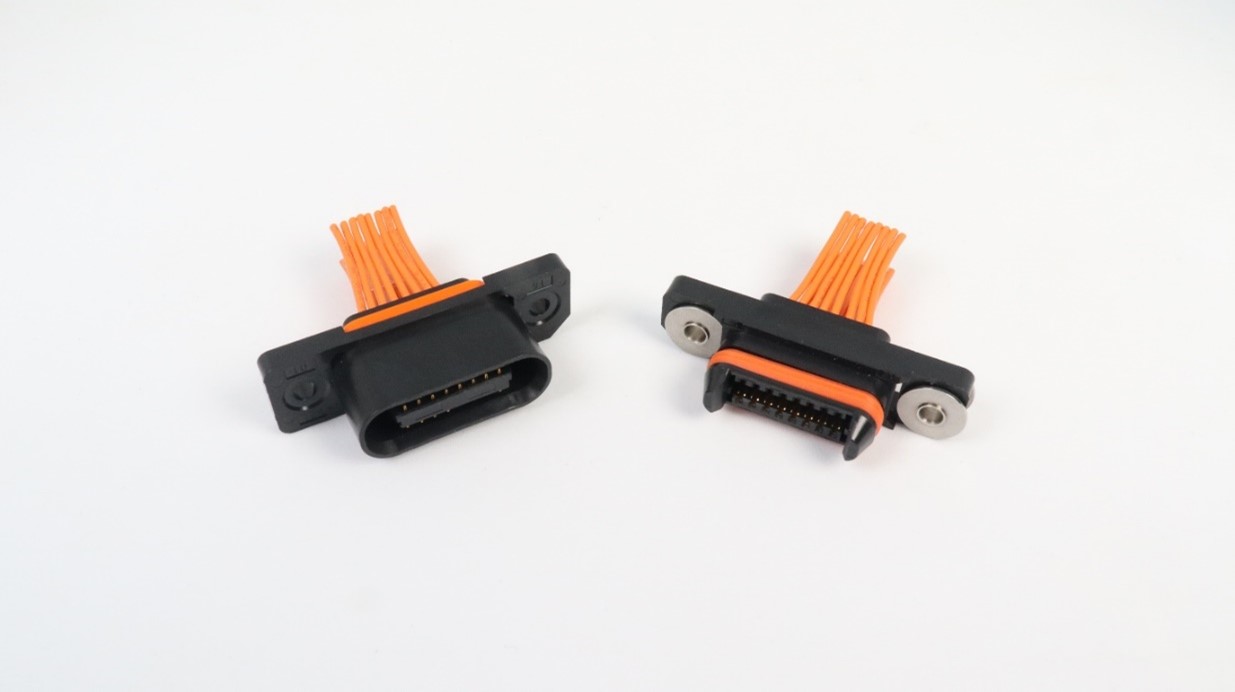

Announcement of the development of the 2.0mm pitch waterproof and dustproof drawer connector “FWSA Series”
KEL Corporation has developed the FWSA Series, a 2.0mm pitch waterproof and dustproof drawer connector for electronic equipment that are susceptible to rainwater and dust when used outdoors.
<Product overview>
– The protection rating, which indicates the waterproof and dustproof performance standard for electronic equipment is “IP67”.
This drawer type connector provides a stable connection even in environments where misalignment is likely to occur during mating, such as at the back of drawers and in unit mounting areas.
- The movable screw part of the receptacle connector can absorb a maximum of ±1.0 mm in the XY directions.
– Planned number of contacts: 2 rows x 16 poles.
-twin-leaf pinching 2point contact structure prevents the contacts from buckling, ensuring high contact reliability.
Equipped with a guide mechanism that absorbs mating error ±1.5 mm in the XY directions.
<Product specifications>
Insulator materials: PBT (glass-filled reinforced) UL94V-0 material, color: black
– Contact material : Copper alloy
contact plating: Nickel-plated base
(Contact area) gold-plated finish
(Crimping part) Tin-plated finish
current rating: 2.5A/1PIN
contact resistance: 20mΩ or less
dielectric withstand voltage: AC 1,000V, 1 minute
insulation resistance: DC 500V, 1,000MΩ or more
– Insertion/removal durability: 50 times
-operating temperature: -55°C to +105°C
– Compatible cable: AWG26
– Protection grade: IP67
<Application>
・Telecommunications equipment market: outdoor fan unit, traffic control devices, monitoring and display units, etc.
・Imaging equipment market: outdoor surveillance camera units, etc.
・Agricultural equipment and IoT market: outdoor agricultural sensor devices, data collection units, etc.
* Because this is a product under development, the specifications, shape, and series name are subject to change without notice.
<Product sample>
This product will be available from October 2025. If you are interested, please use send at our sales representative => bce@bce.it .
<Sales period>
Sales scheduled to begin in April 2026
