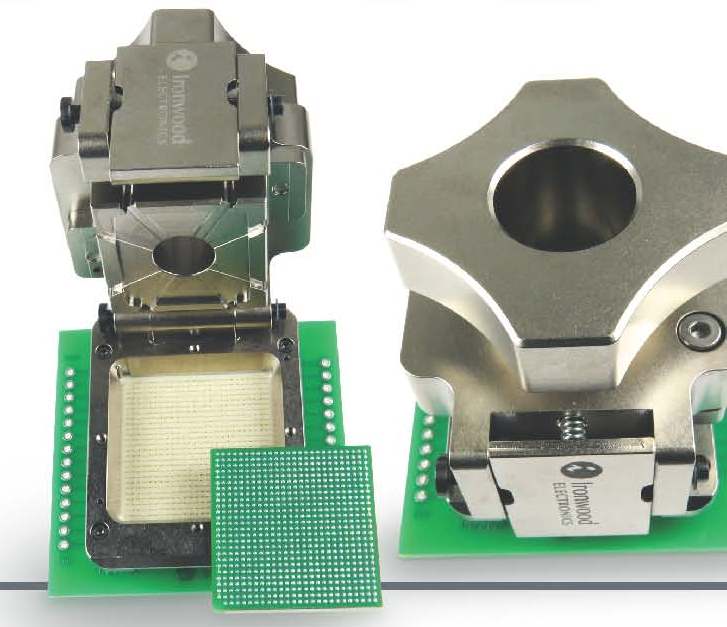

Stamped Spring Pin Sockets for High Speed Applications
Stamped Spring Pin (SBT) sockets excel in both high insertion count and demanding thermal requirements. The SBT contact is a stamped contact with an external spring and a connecting inner leaf spring. SBT sockets offer low cost and better electrical/mechanical performance than conventional pogo pin sockets while providing a robust solution for Burn-in & Test applications.
FEATURES AND BENEFITS
Long Contact Travel: Compliancy for large package warpage
Gold plated BeCu material: High temperature applications
Small Socket Footprint: Easy to place inductors, capacitors, resistors, etc. for tuning and increasing bandwidth. Ideal for IC prototype and system testing and field upgradeable system designs
High Resilient Spring: Compression cycles in hundreds of thousands
Optimized Pin Diameter to Length Ratio: Impedance matched high speed applications Stamped Contact High current applications
Automated assembly: Low cost, short lead time
