Ultra High Density Connectors

High-Performance for Signal and Data Trasmission

ALTW’s UHD (Ultra High Density) technology enables the integration of highest pin counts in all existing rugged circular connectors for applications space constraints but also high speed and high reliability transmission such as M8, M12, X-Lok, Ceres, RBL, M23, etc.

       M8 Connector                     M12 Connector

General Characteristics

  • Screw Thread & Push Pull
  • Plastic and Metal Versions, Nominal Current 1A
  • Durability > 100 Cycles; Salt Spray Up To 1,000h
  • Operating Temperature -40°C to +105°C
  • Meets IP67, IP68 and IP69K Ingress Protection
  • Robust PVC & PUR Overmolded Cables

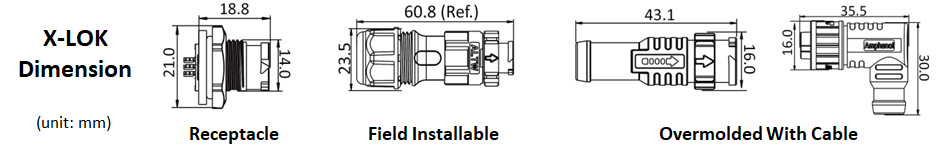

X-LOK Mini Size Connector

General Characteristics

  • Blind Mate, Audible Feedback and Push-Lock Quick Mating
  • Plastic and Metal Versions; Nominal Current 0.5A
  • Durability 1,000 Cycles; Salt Spray Up To 1,000h
  • Operating Voltage (AC/DC) 50V
  • Operating Temperature -40°C to +105°C
  • Contact Resistant 15 mΩ Max
  • Meets IP68 Ingress Protection
