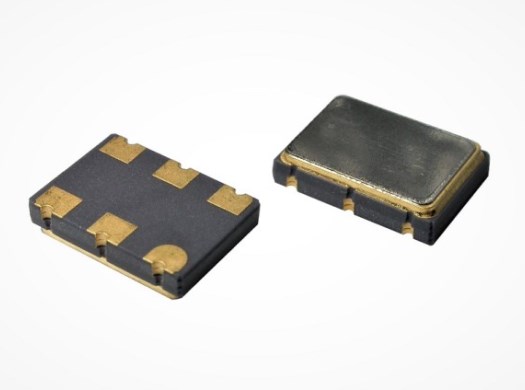

The Smallest Differential Crystal Oscillator:
2.5 x 2.0 mm – 6 pad !

This evolution results in following new products:

• SX2EK  :  LVPECL logic
• SX2LK  :  LVDS logic
• SX2HK :  HCSL logic

Features:

• Differential Oscillators with smallest footprint.
• Non PLL , 3rd OT blanks design.
• Logics : LVPECL , LVDS or HCSL
• Frequency range : 13.5 MHz up to 200.0 MHz
• Low RMS Phase Jitter : 200 fsec typ , 500 fsec max (12 kHz–20 MHz)
• Package size:  2.5×2.0 mm 6 pad

We can provide engineers samples for prototypes and low cost , fast delivery for volume production.
