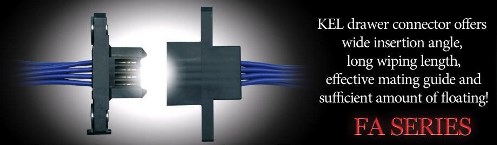

FA Series is 2.5mm pitch drawer connector, and it offers prevention of buckling of the contact pins, easy adjustment of the mating position, reduction of the stress when mating and highly reliable connection.

Its sufficient amount of floating (±1.4mm Max. to X and Y directions) reduces the stress occurs in mated condition.
Additionally it has a structure to absorb ±3mm gap in X and Y directions when mating.
In this structure, contact pins do not touch until both receptacle and plug become straight in order to prevent the buckling.

For the concept of contact mechanism, twin-leaf pinching 2 point contact structure which is well acknowledged for our battery connector GF series is adopted.

The current rating is 3A, and AWG22 to 26 cables are applicable. Both board to cable type and cable to cable type are available, and 4 to 40 pin counts are available for a wide range of usage. (Available pin count differs according to the connector type.) !
