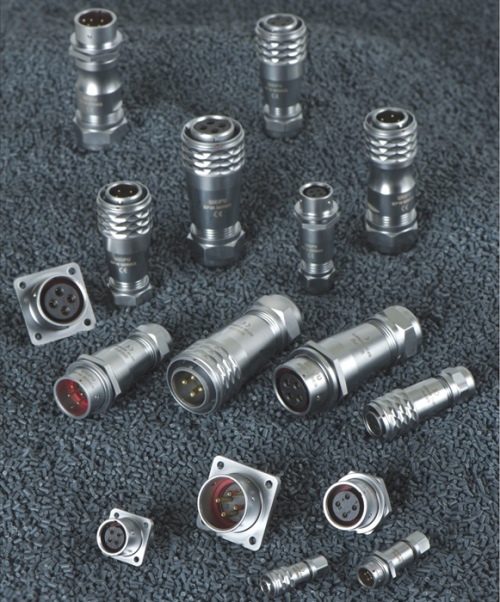

The SF6, SF8, SF10, SF12, SF16 and SF20 series are IP67 waterproof connectors, made of brass with chrome plating, especially designed for the high-end market. With push and pull coupling they are the most waterproof connectors. The series are available for cable to cable (in-line) and cable to panel-mount connections. Each side can be made male or female contact.

Features:

  • IP rating: IP67
  • CE, RoHS approval
  • Shell material: Brass with chrome plating
  • Coupling: Push-pull
  • Nr. of contacts: SF6: 2-5 / SF8: 2-8 / SF10: 2-5 / SF12: 2-9 / SF16: 2-10 / SF20: 2-12 gold-plated contacts
  • Termination: Solder for SF6, SF8, SF10, SF12, SF16, SF20
  •                    Crimp for SF16, SF20 / Screw for SF20
  • Rated Current (A) and V: 3 – 25 Amps / 30 – 500 (AC,V)
  • Mating cycle: 500
  • Temperature range: -40°C / +85°C
  • Can be cable-to-panel and cable-to-cable

Applications: these IP67 waterproof connectors are designed for high-end products. The stunning brass made shell made is widely used in many high-end areas, such as medical devices, high-end equipments, testing or measuring equipments, communications field, marine equipments, industrial, etc.. They can be used for both power and signal and in any outdoor environment applications.
