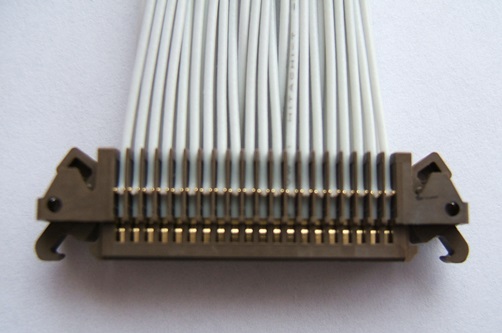

KEL releases 1,27mm pitch connectors for discrete wire. The 8927E Series is a half-pitch connector for discrete wires (AWG#28). The board side connector is of a straight SMT type with the smallest possible flange to minimize size.
The cable side connector incorporates KEL’s unique Eject/Lock mechanism that conveniently allows connection/disconnection of the connector with one hand.


1,27mm pitch board to cable connector – Designed for discrete wire (AWG#28) – IDC type connection – Incorporates the Eject/Lock mechanism for connect/disconnect with one hand – Highly reliable design ensuring positive contact retention and precise fit. – Smooth insertion/removal due to face-to-face contact – Trilateral moulding prevents contact deformation – Available with 20 and 40 contacts – Board connector SMT, height 6mm – RoHS compliant
