Small-sized SMD TCXO and VCTCXO

JT22S and JT22SV is a series of temperature compensated high stability oscillators with a frequency stability as tight as ± 1.0 ppm, and is offered in a frequency range from 9.5 MHz to 52.0 MHz and is starting at 1.8V.

In addition to the TCXO JT22S, the VCTCXO version JT22SV can be tuned by ±8.0 ppm min. using an external voltage.

Due to the high frequency stability down to ± 1.0 ppm the JT22S(V) series fulfils very high requirements and is specially designed for ZigBee, Bluetooth and other wireless applications.

The JT22S(V) series combines excellent frequency stability with a clipped sine output, that enables a very low power consumption.

The JT22S(V) series is particularly suitable for miniaturized electronic devices with very limited space on printed circuit board.

The JT22S(V) is available in a variety of temperature ranges, up to the extended operating temperature range of -40°C ~ +85°C for industrial applications.

The JT22S  / JT22SV complies with the EU RoHS directive and is optimally suitable for fast automatic assembly lines.

Key-Features of the JT22S and JT22SV:

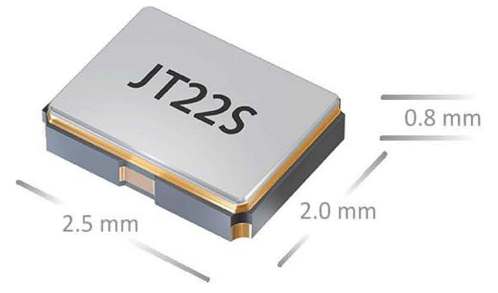

■  miniature-package: 2.5mm x 2.0mm x 0.8mm

■  best stability and temp. range: ± 1 ppm (-40°C ~ +85°C)

■  frequency range: 9.5 MHz ~ 52.0 MHz

■  supply voltages: 1.8 / 2.5 / 2.8 / 3.0 / 3.3 (± 5%)

■  typical applications: Wireless applications (WiFi, ZigBee, Bluetooth etc.)

■  VCTCXO version available with configurable center voltage

■  small packaging area and light weight

■  suitable for Lead-free soldering process at 260°C max

■  100% lead-free

■  RoHS compliant
