75GHz Open Top Socket for BGA1156 Download PDF

Ironwood-C17001b_118
Logo

Quickly and easily Socket your 1mm pitch 34×34 array, 1156BGA packages on any application board with performance equivalent to direct solder version !!

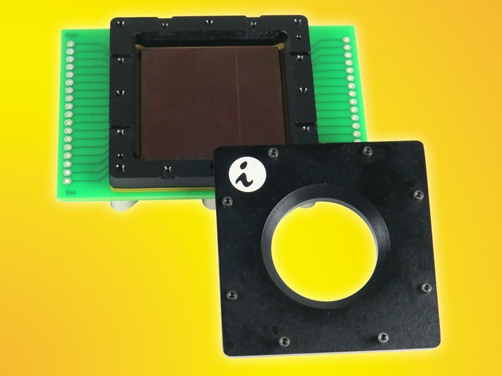

Ironwood Electronics has recently introduced a new BGA socket design using high performance elastomer capable of 75GHz, very low inductance and wide temperature applications. The GTL-BGA-6007 socket is designed for 35×35 mm package size and operates at bandwidths up to 75GHz with less than 1dB of insertion loss. The contact resistance is typically 30 milliohms per pin. The socket is mounted on the target PCB with no soldering, and uses very small real estate allowing capacitors/resistors to be placed close by. Other passive components can be placed on the back side of PCB by creating custom cutouts in the stiffener plate. The socket is constructed with Open top lid which allows access to center of the device. To use, place the device inside the socket, close the lid and apply specified torque on each lid mounting screw gradually.


The GTL-BGA-6007 socket is constructed with high performance and low inductance elastomer contactor. The temperature range is -55 °C to +160 °C. Works with IC's such as BGA, 35x35mm with 34×34 array and 1mm pitch.
